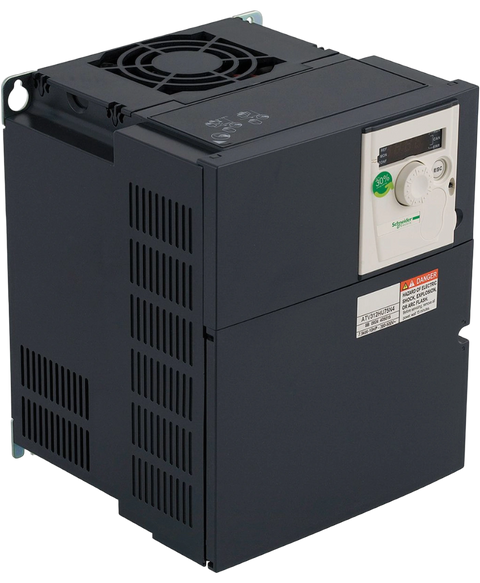

Schneider Electric ATV312HU11N4
The ATV312HU11N4 is a variable frequency drive from Schneider Electric's ATV312 series. This unit specializes in controlling asynchronous motors with an output power of 1.1 kW and is compatible with supply voltages ranging from 380 to 500 Volts.
This Schneider Electric ATV312HU11N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805623109.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable Frequency Drive |
| Product Line | ATV312 |
| Part Number | ATV312HU11N4 |
| EAN | 3606480077555 |
| Weight | 4.31 lbs (1.96 kg) |
| Application | Asynchronous Motor Control |
| Heat Sink | Yes |
| Motor Power | 1.1 kW |
| Supply Voltage | 380 to 500 Volts |
| Line Frequency | 50/60 Hz |
| Line Phase | 3 |
| Line Current | 4.9 Amps @ 380 Volts |
| Apparent Power | 3.2 kVA |
| Power Dissipation | 48 W |
| Output Current | 3 Amps |
| Switching Frequency | 2 to 16 kHz |
| Analog Output | 1 |
| Discrete Input | 6 |
| Brand | Schneider Electric |
