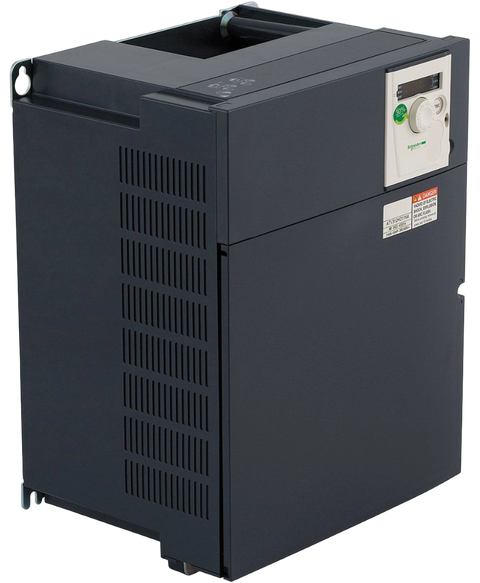

Schneider Electric ATV312HD15M3
The ATV312HD15M3 variable speed drive from Schneider Electric is a robust solution designed to manage motor operations with efficiency. Ideal for three-phase applications, this model has a power rating of 15 kW and supports a maximum horsepower of 20. Its operating supply voltage ranges from 200 to 240 V, accommodating standard network requirements.
This Schneider Electric ATV312HD15M3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805597301.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | ATV312 |
| Part Number | ATV312HD15M3 |
| EAN | 3606480077517 |
| Weight | 20.00 lbs (9.07 kg) |
| Product | Variable Speed Drive |
| Assembly Style | With Heat Sink |
| Motor Power | 15 kW |
| Max Horsepower Rating | 20 hp |
| Rated Supply Voltage | 200 to 240 V |
| Supply Frequency | 50/60 Hz |
| Number of Phases | 3 |
| Line Current | 82.1 A |
| EMC Filter | Without EMC Filter |
| Apparent Power | 28.5 kVA |
| Max Transient Current | 99 A for 60 seconds |
| Power Dissipation | 628 W |
| Communication Port Protocol | Modbus, CANopen |
| Degree of Protection | IP41 |
| Nominal Switching Frequency | 4 kHz |
| Brand | Schneider Electric |
