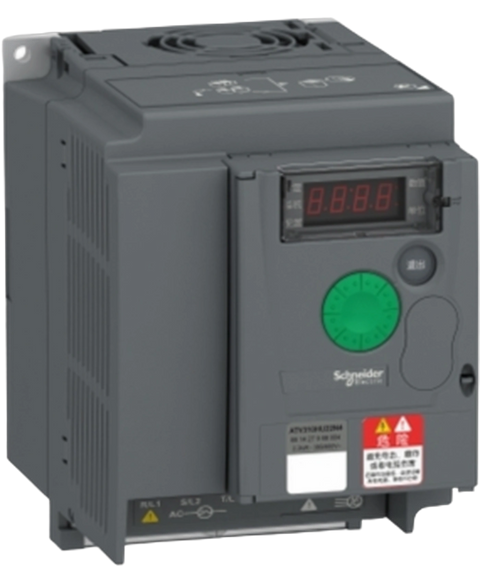

Schneider Electric ATV310HU22N4A
The ATV310HU22N4A from Schneider Electric forms part of the Altivar series and serves as a variable speed drive. Designed to accommodate a supply voltage range of 380 to 460 V, it functions effectively with a motor power rating of 2.2 kW (3 hp).
This Schneider Electric ATV310HU22N4A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26801438993.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV310HU22N4A |
| Weight | 2.44 lbs (1.11 kg) |
| Product | Variable Speed Drive |
| Assembly Style | With Heat Sink |
| Number of Phases | 3 |
| Rated Supply Voltage | 380 to 460 V |
| Motor Power | 2.2 kW |
| Horsepower Rating | 3 hp |
| Noise Level | 50 dB |
| EMC Filter | Without |
| Type of Cooling | Integrated Fan |
| Supply Frequency | 50/60 Hz |
| Communication Port Protocol | Modbus |
| Connector Type | RJ45 |
| Physical Interface | 2-wire RS 485 for Modbus |
| Transmission Rate | 38400 bit/s |
| Line Current | 8.8 A |
| Brand | Schneider Electric |
