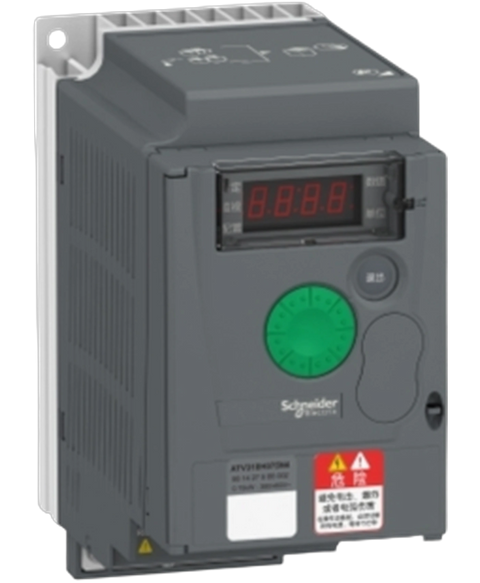

Schneider Electric ATV310H075N4A
The ATV310H075N4A variable speed drive from Schneider Electric belongs to the Altivar series. This drive offers a power rating of 0.75 kW (1 hp) and is suitable for heavy-duty applications with a continuous output current of 2.3 A, accommodating voltages of 380 to 460 V in a three-phase configuration.
This Schneider Electric ATV310H075N4A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805619549.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV310H075N4A |
| Weight | 1.75 lbs (0.79 kg) |
| Power Rating | 0.75 kW / 1 hp |
| EMC Filter | Without EMC filter |
| Continuous Output Current | 2.3 A (heavy duty) |
| Voltage Range | 380...460 V, 3 Phase |
| Line Current | 3.5 A at 380 V (heavy duty) |
| Speed Drive Output Frequency | 0.5…400 Hz |
| Frequency Range | 50/60 Hz +/- 5% |
| Apparent Power | 2.5 kVA at 460 V (heavy duty) |
| Nominal Switching Frequency | 4 kHz |
| Motor Compatibility | Asynchronous Motors |
| Maximum Transient Current | 3.5 A during 60s (heavy duty) |
| Brand | Schneider Electric |
