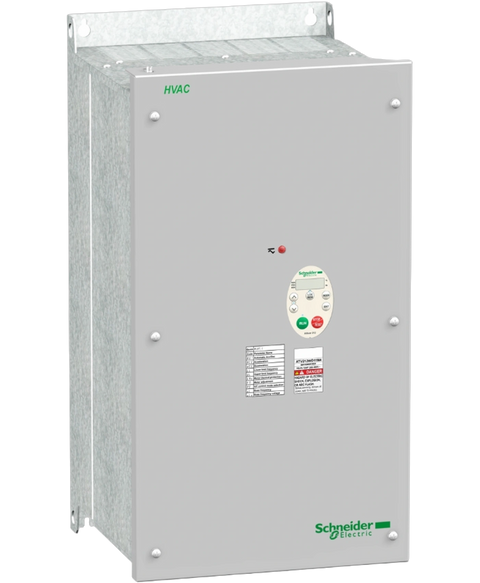

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ATV212WD11N4
Drive, altivar 212, variable speed, 11kW, 15HP, three-phase supply voltage, 380-415VAC, 50,60Hz
This Schneider Electric ATV212WD11N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805552755.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,162.57
(inc. GST)
In Stock
| Device short name | ATV212 |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phases |
| Motor power kW | 11 kW |
| Motor power hp | 15 hp |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Line current | 16.9 A at 480 V | 21.2 A at 380 V |
| Range of product | Altivar 212 |
| Product or component type | Variable speed drive |
| Product specific application | Pumps and fans in HVAC |
| Communication port protocol | BACnet | METASYS N2 | Modbus | LonWorks | APOGEE FLN |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| EMC filter | Class C2 EMC filter integrated |
| IP degree of protection | IP55 |
| Apparent power | 17.1 kVA at 380 V |
| Continuous output current | 22.5 A at 380 V | 22.5 A at 460 V |
| Maximum transient current | 24.8 A for 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Speed range | 1…10 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Local signalling | 1 LED (red) for DC bus energized |
| Output voltage | <= power supply voltage |
| Isolation | Electrical between power and control |
| Type of cable | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC |
| Electrical connection | VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14 | L1/R, L2/S, L3/T: terminal 16 mm² / AWG 4 |
| Tightening torque | 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) | 3 N.m, 26.5 lb.in (L1/R, L2/S, L3/T) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection | Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection |
| Sampling duration | 2 ms +/- 0.5 ms F discrete | 2 ms +/- 0.5 ms R discrete | 2 ms +/- 0.5 ms RES discrete | 3.5 ms +/- 0.5 ms VIA analog | 22 ms +/- 0.5 ms VIB analog |
| Response time | FM 2 ms, tolerance +/- 0.5 ms for analog output(s) | FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) | FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) | RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s) |
| Accuracy | +/- 0.6 % (VIA) for a temperature variation 60 °C | +/- 0.6 % (VIB) for a temperature variation 60 °C | +/- 1 % (FM) for a temperature variation 60 °C |
| Linearity error | VIA: +/- 0.15 % of maximum value for input | VIB: +/- 0.15 % of maximum value for input | FM: +/- 0.2 % for output |
| Analogue output type | FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits | FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits |
| Discrete output type | Configurable relay logic: (FLA, FLC) NO - 100000 cycles | Configurable relay logic: (FLB, FLC) NC - 100000 cycles | Configurable relay logic: (RY, RC) NO - 100000 cycles |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) | 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) | 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) | 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) |
| Discrete input type | F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm | R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm | RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
| Discrete input logic | Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1) | Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) |
| Dielectric strength | 3535 V DC between earth and power terminals | 5092 V DC between control and power terminals |
| Insulation resistance | >= 1 mOhm 500 V DC for 1 minute |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.024/50 Hz |
| Communication service | Write multiple registers (16) 2 words maximum | Read device identification (43) | Time out setting from 0.1 to 100 s | Write single register (06) | Monitoring inhibitable | Read holding registers (03) 2 words maximum |
| Option card | Communication card for LonWorks |
| Functionality | Mid |
| Specific application | HVAC |
| Discrete output number | 2 |
| Analogue input number | 2 |
| Analogue input type | VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits | VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits | VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm | VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Physical interface | 2-wire RS 485 |
| Connector type | 1 RJ45 | 1 open style |
| Transmission rate | 9600 bps or 19200 bps |
| Transmission frame | RTU |
| Number of addresses | 1…247 |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Type of polarization | No impedance |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points | Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) | Voltage/frequency ratio - Energy Saving, quadratic U/f | Flux vector control without sensor, standard | Voltage/frequency ratio, 2 points |
| Torque accuracy | +/- 15 % |
| Transient overtorque | 120 % of nominal motor torque +/- 10 % for 60 s |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01 to 3200 s | Automatic based on the load |
| Motor slip compensation | Automatic whatever the load | Adjustable | Not available in voltage/frequency ratio motor control |
| Switching frequency | 6...16 kHz adjustable | 12...16 kHz with derating factor |
| Nominal switching frequency | 12 kHz |
| Braking to standstill | By DC injection |
| Network frequency | 47.5...63 Hz |
| Prospective line Isc | 22 kA |
| Protection type | Overheating protection: drive | Thermal power stage: drive | Short-circuit between motor phases: drive | Input phase breaks: drive | Overcurrent between output phases and earth: drive | Overvoltages on the DC bus: drive | Break on the control circuit: drive | Against exceeding limit speed: drive | Line supply overvoltage and undervoltage: drive | Line supply undervoltage: drive | Against input phase loss: drive | Thermal protection: motor | Motor phase break: motor | With PTC probes: motor |
| Width | 290 mm |
| Height | 560 mm |
| Depth | 315 mm |
| Net weight | 30.3 kg |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Vibration resistance | 1.5 mm (f= 3…13 Hz) conforming to IEC 60068-2-6 | 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 | Classes 3S2 conforming to IEC 60721-3-3 |
| Noise level | 57.4 dB conforming to 86/188/EEC |
| Operating altitude | 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m | <= 1000 m without derating |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 | 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) | 40…50 °C (with derating factor) |
| Operating position | Vertical +/- 10 degree |
| Product certifications | C-Tick | UL | NOM 117 | CSA |
| Marking | CE |
| Standards | IEC 61800-3 environments 1 category C3 | IEC 61800-3 environments 1 category C2 | IEC 61800-3 category C2 | IEC 61800-3 environments 2 category C1 | IEC 61800-3 category C3 | IEC 61800-5-1 | IEC 61800-3 environments 1 category C1 | IEC 61800-3 environments 1 category C1 | IEC 61800-3 environments 2 category C2 | IEC 61800-3 environments 1 category C3 | IEC 61800-3 environments 2 category C3 | EN 55011 class A group 1 | IEC 61800-5-1 | IEC 61800-3 category C2 | EN 61800-3 category C3 | IEC 61800-3 | IEC 61800-3 environments 1 category C2 | IEC 61800-3 environments 2 category C3 | IEC 61800-3 environments 2 category C2 | IEC 61800-3 environments 2 category C1 | IEC 61800-3 |
| Assembly style | With heat sink |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 | Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Regulation loop | Adjustable PI regulator |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 52.000 cm |
| Package 1 Width | 45.000 cm |
| Package 1 Length | 80.000 cm |
| Package 1 Weight | 35.000 kg |
