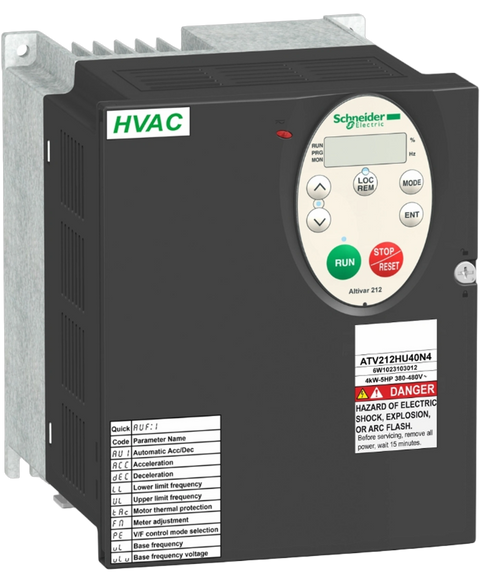

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ATV212HU55N4
The ATV212HU55N4 from Schneider Electric is a variable frequency drive designed for efficient control of motor functions. This model delivers a power rating of 7.5 horsepower and operates effectively within a nominal voltage range of 380 to 480 V AC.
This Schneider Electric ATV212HU55N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26926318496.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,029.14
(inc. GST)
In Stock
| Device short name | ATV212 |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phases |
| Motor power kW | 5.5 kW |
| Motor power hp | 7.5 hp |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Line current | 10.9 A at 380 V | 8.6 A at 480 V |
| Range of product | Altivar 212 |
| Product or component type | Variable speed drive |
| Product specific application | Pumps and fans in HVAC |
| Communication port protocol | METASYS N2 | LonWorks | BACnet | Modbus | APOGEE FLN |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| EMC filter | Class C2 EMC filter integrated |
| IP degree of protection | IP21 |
| Apparent power | 9.1 kVA at 380 V |
| Continuous output current | 12 A at 380 V | 12 A at 460 V |
| Maximum transient current | 13.2 A for 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Speed range | 1…10 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Local signalling | 1 LED (red) for DC bus energized |
| Output voltage | <= power supply voltage |
| Isolation | Electrical between power and control |
| Type of cable | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC |
| Electrical connection | VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14 | L1/R, L2/S, L3/T: terminal 6 mm² / AWG 10 |
| Tightening torque | 1.3 N.m, 11.5 lb.in (L1/R, L2/S, L3/T) | 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection | Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection |
| Sampling duration | 2 ms +/- 0.5 ms F discrete | 2 ms +/- 0.5 ms R discrete | 2 ms +/- 0.5 ms RES discrete | 3.5 ms +/- 0.5 ms VIA analog | 22 ms +/- 0.5 ms VIB analog |
| Response time | FM 2 ms, tolerance +/- 0.5 ms for analog output(s) | FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) | FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) | RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s) |
| Accuracy | +/- 0.6 % (VIA) for a temperature variation 60 °C | +/- 0.6 % (VIB) for a temperature variation 60 °C | +/- 1 % (FM) for a temperature variation 60 °C |
| Linearity error | VIA: +/- 0.15 % of maximum value for input | VIB: +/- 0.15 % of maximum value for input | FM: +/- 0.2 % for output |
| Analogue output type | FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits | FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits |
| Discrete output type | Configurable relay logic: (FLA, FLC) NO - 100000 cycles | Configurable relay logic: (FLB, FLC) NC - 100000 cycles | Configurable relay logic: (RY, RC) NO - 100000 cycles |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) | 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) | 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) | 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) |
| Discrete input type | F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm | R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm | RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
| Discrete input logic | Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1) | Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) |
| Dielectric strength | 3535 V DC between earth and power terminals | 5092 V DC between control and power terminals |
| Insulation resistance | >= 1 mOhm 500 V DC for 1 minute |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.024/50 Hz |
| Communication service | Read device identification (43) | Read holding registers (03) 2 words maximum | Write multiple registers (16) 2 words maximum | Write single register (06) | Monitoring inhibitable | Time out setting from 0.1 to 100 s |
| Option card | Communication card for LonWorks |
| Power dissipation in W | 215 W |
| Air flow | 74 m3/h |
| Functionality | Mid |
| Specific application | HVAC |
| Variable speed drive application selection | Building - HVAC compressor for scroll | Building - HVAC fan | Building - HVAC pump |
| Motor power range AC-3 | 4…6 kW at 380…440 V 3 phases | 4…6 kW at 480…500 V 3 phases |
| Motor starter type | Variable speed drive |
| Discrete output number | 2 |
| Analogue input number | 2 |
| Analogue input type | VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits | VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits | VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm | VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Physical interface | 2-wire RS 485 |
| Connector type | 1 RJ45 | 1 open style |
| Transmission rate | 9600 bps or 19200 bps |
| Transmission frame | RTU |
| Number of addresses | 1…247 |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Type of polarization | No impedance |
| Asynchronous motor control profile | Voltage/frequency ratio, 2 points | Voltage/frequency ratio, 5 points | Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) | Flux vector control without sensor, standard | Voltage/frequency ratio - Energy Saving, quadratic U/f |
| Torque accuracy | +/- 15 % |
| Transient overtorque | 120 % of nominal motor torque +/- 10 % for 60 s |
| Acceleration and deceleration ramps | Automatic based on the load | Linear adjustable separately from 0.01 to 3200 s |
| Motor slip compensation | Not available in voltage/frequency ratio motor control | Automatic whatever the load | Adjustable |
| Switching frequency | 6...16 kHz adjustable | 12...16 kHz with derating factor |
| Nominal switching frequency | 12 kHz |
| Braking to standstill | By DC injection |
| Network frequency | 47.5...63 Hz |
| Prospective line Isc | 22 kA |
| Protection type | Overheating protection: drive | Thermal power stage: drive | Short-circuit between motor phases: drive | Input phase breaks: drive | Overcurrent between output phases and earth: drive | Overvoltages on the DC bus: drive | Break on the control circuit: drive | Against exceeding limit speed: drive | Line supply overvoltage and undervoltage: drive | Line supply undervoltage: drive | Against input phase loss: drive | Thermal protection: motor | Motor phase break: motor | With PTC probes: motor |
| Width | 142 mm |
| Height | 184 mm |
| Depth | 150 mm |
| Net weight | 3.35 kg |
| Pollution degree | 3 conforming to IEC 61800-5-1 |
| Vibration resistance | 1.5 mm (f= 3…13 Hz) conforming to IEC 60068-2-6 | 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 | Classes 3S2 conforming to IEC 60721-3-3 |
| Noise level | 51 dB conforming to 86/188/EEC |
| Operating altitude | 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m | <= 1000 m without derating |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 | 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) | 40…50 °C (with derating factor) |
| Operating position | Vertical +/- 10 degree |
| Product certifications | NOM 117 | CSA | C-Tick | UL |
| Marking | CE |
| Standards | IEC 61800-3 category C3 | IEC 61800-3 category C2 | EN 61800-3 category C3 | EN 55011 class A group 1 | IEC 61800-3 environments 1 category C2 | IEC 61800-3 environments 1 category C3 | IEC 61800-3 environments 2 category C1 | IEC 61800-3 environments 2 category C3 | IEC 61800-3 environments 2 category C1 | IEC 61800-3 | IEC 61800-3 environments 2 category C2 | IEC 61800-3 category C2 | IEC 61800-3 environments 1 category C2 | IEC 61800-5-1 | IEC 61800-3 environments 1 category C1 | IEC 61800-3 environments 2 category C2 | IEC 61800-5-1 | IEC 61800-3 environments 2 category C3 | IEC 61800-3 environments 1 category C1 | IEC 61800-3 environments 1 category C3 | IEC 61800-3 | UL Type 1 |
| Assembly style | With heat sink |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 | Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Regulation loop | Adjustable PI regulator |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.000 cm |
| Package 1 Width | 26.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 3.069 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 49.432 kg |
