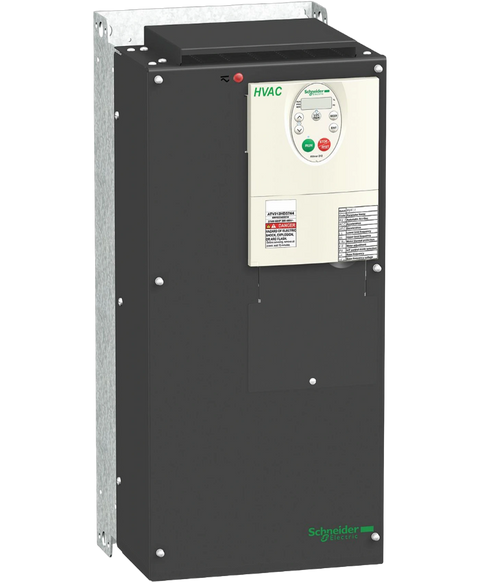

Schneider Electric ATV212HD55N4
The ATV212HD55N4 variable speed drive by Schneider Electric is designed for precise control in various applications. With a power capacity of 55 kW (75 HP) and a 3-phase input voltage range of 380 to 480 V AC, this drive is well-suited for industrial environments.
This Schneider Electric ATV212HD55N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805623183.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV212HD55N4 |
| EAN | 3606480322587 |
| Weight | 93.75 lbs (42.52 kg) |
| Name | Variable Speed Drive |
| Power Rating | 55 kW (75 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Current | 116 A |
| Frequency Range | 0.5–200 Hz |
| Enclosure Rating | IP21 |
| EMC Filter | Built-in |
| Control Type | V/F and Sensorless Vector Control |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Communication Protocols | Modbus RTU, BACnet MS/TP, Metasys N2, APOGEE FLN |
| Operating Temperature | -10°C to 40°C |
| Applications | HVAC Systems, Pumps, Fans, Building Automation |
| Brand | Schneider Electric |
