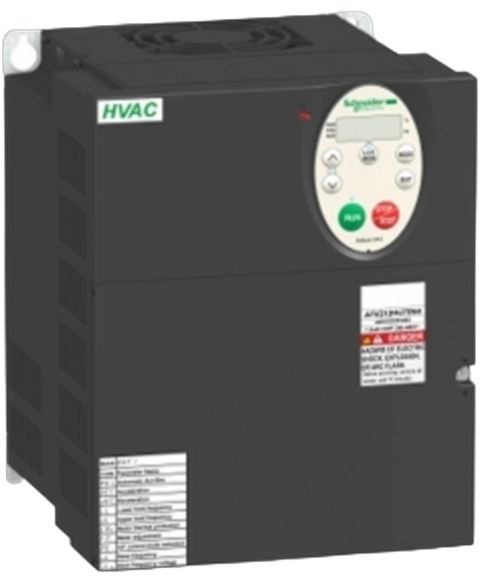

Schneider Electric ATV212HD11N4
Schneider Electric's ATV212HD11N4 is a robust variable-speed drive designed for efficient motor control. Its motor capacity is 11 kW, making it suitable for applications requiring 15 hp.
This Schneider Electric ATV212HD11N4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805622955.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | ATV212 |
| Part Number | ATV212HD11N4 |
| Weight | 5.00 lbs (2.27 kg) |
| Device Type | Variable speed drive |
| Motor Capacity | 11 kW (equivalent to 15 hp) |
| Input Voltage Range | 380–480 V (±15% upper and ±10% lower limits) |
| Power Phases | Three-phase supply |
| Built-in EMC Compliance | Integrated Class C2 filter |
| Output Frequency Range | 0.5 Hz to 200 Hz |
| Enclosure Rating | IP21 ingress protection |
| Continuous Output Current | 22.5 A at 380 V or 460 V |
| Overload Capability | 120% of rated current for up to 60 seconds |
| Line Input Current | 16.8 A at 480 V; 21.1 A at 380 V |
| Communication Interfaces | Modbus, BACnet, METASYS N2, APOGEE FLN, LonWorks |
| Switching Frequency Settings | Adjustable from 6 to 16 kHz, default 12 kHz |
| Operating Temperature Range | -10°C to 40°C (50°C with performance derating) |
| Torque Regulation Accuracy | Within ±15% of the nominal torque |
| Brand | Schneider Electric |
