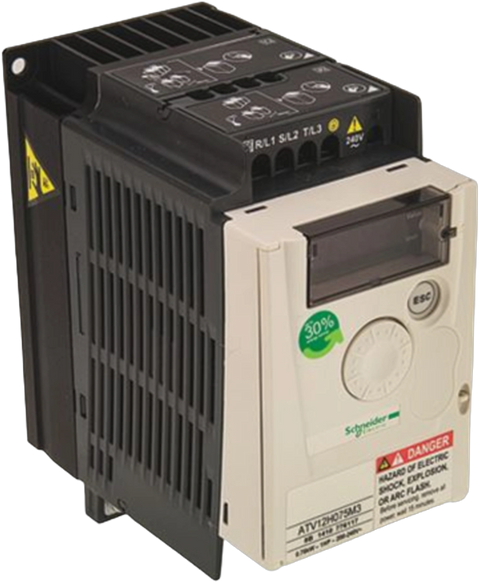

Schneider Electric ATV12H075M3
The ATV12H075M3 by Schneider Electric is a variable speed drive designed for efficient motor control. It accommodates a supply voltage range of 200 to 240 V, with an output current capacity of 4.2 A and a motor power rating of 0.75 kW. This drive can achieve a maximum horsepower rating of 1 hp, making it suitable for various applications.
This Schneider Electric ATV12H075M3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805406721.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV12H075M3 |
| EAN | 3606480071164 |
| Weight | 1.81 lbs (0.82 kg) |
| Product | Variable Speed Drive |
| Mounting Mode | Cabinet Mount |
| Communication Port Protocol | Modbus |
| Supply Frequency | 50/60 Hz |
| Rated Supply Voltage | 200 to 240 V |
| Nominal Output Current | 4.2 A |
| Motor Power | 0.75 kW |
| Max Horsepower Rating | 1 hp |
| EMC Filter | Without EMC Filter |
| Degree of Protection | IP20 |
| Discrete Input Number | 4 |
| Discrete Output Number | 2 |
| Physical Interface | 2-Wire RS 485 |
| Connector Type | 1 RJ45 |
| Type of Polarization | No Impedance |
| Brand | Schneider Electric |
