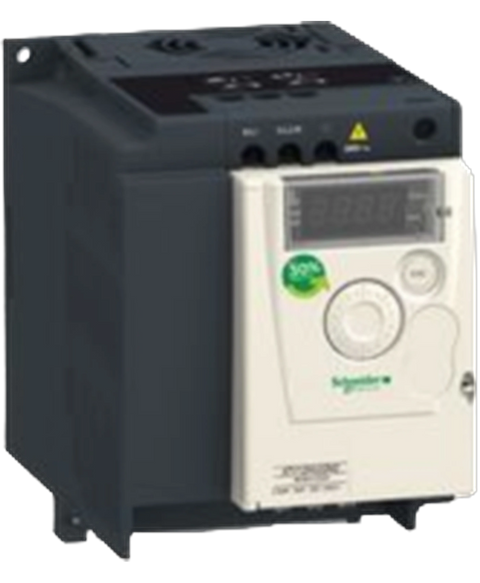

Schneider Electric ATV12H037F1
The ATV12H037F1 from Schneider Electric is part of the Altivar series of variable speed drives. Designed for compatibility with asynchronous motors, this unit has a rated power of 0.5 HP and operates on a single-phase input voltage of 100-120V AC, outputting three-phase voltage adjusted between 200-240V AC.
This Schneider Electric ATV12H037F1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26829856573.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Altivar |
| Part Number | ATV12H037F1 |
| EAN | 3606480071027 |
| Weight | 2.00 lbs (0.91 kg) |
| Product | Variable Speed Drives |
| Asynchronous Motors | Compatible |
| Heatsink | Included |
| Rated Power | 0.5 HP |
| Input Voltage Type | 1-Phase |
| Input Voltage Range | 100-120V AC |
| Output Voltage Type | 3-Phase |
| Output Voltage Range | 200-240V AC |
| Operating Temperature | 0 to 40 degrees Celsius |
| Maximum Operating Humidity | 80% RH without condensation |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Storage Humidity | 80% RH without condensation |
| Maximum Operating Altitude | 1000m above sea level |
| Maximum Storage Altitude | 1000m above sea level |
| Environment | Clean indoor environment with no corrosive chemicals |
| Brand | Schneider Electric |
