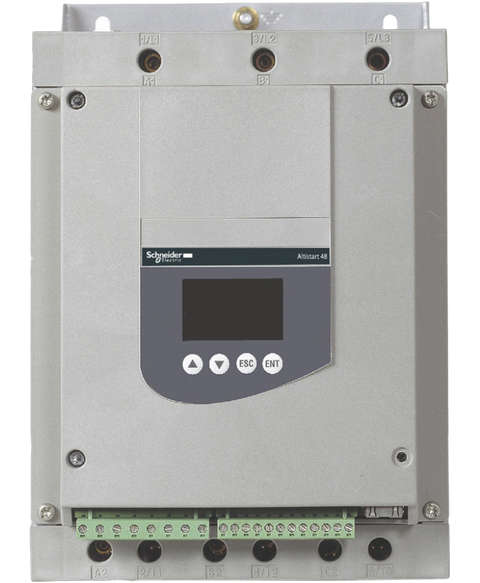

Schneider Electric ATS48D75Q
The ATS48D75Q from Schneider Electric represents a reliable soft starter motor designed to regulate motor operations effectively. This unit can support a wide rated supply voltage range of 230V to 415V AC and is capable of handling motor power ratings of up to 37kW in standard settings, and 30kW in scenarios categorized as severe.
This Schneider Electric ATS48D75Q is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26805612426.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Soft Starter Motor |
| Product Line | ALTISTART |
| Part Number | ATS48D75Q |
| Weight | 10.31 lbs (4.68 kg) |
| Rated Supply Voltage | 230V to 415V AC |
| Motor Power Rating | Up to 37 kW (at 400V) for standard applications and 30 kW (at 400V) for severe applications when connected in the motor supply line |
| Current Rating | 75 A |
| Motor Power Rating (Delta Connection) | Up to 55 kW (at 400V) for both standard and severe applications |
| Protection Type | IP20 |
| Control Circuit Voltage | 220V to 415V, 50/60 Hz |
| Power Dissipation | 201W for severe applications, 245W for standard applications |
| Starting Current | 0.4 to 1.3 Icl adjustable |
| Communication Protocol | Modbus via RJ45 connector |
| Cooling Method | Forced convection |
| Discrete Inputs | 5, with positive logic |
| Analogue Output | Current output AO: 0-20 mA or 4-20 mA, impedance \u003C500 Ohm |
| Brand | Schneider Electric |
