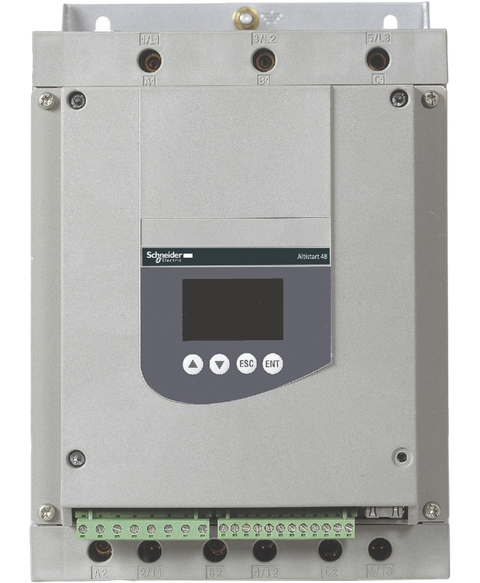

Schneider Electric ATS48D32Q
Variable speed drive, for asynchronous motors, 3-phase, 16A, 380-480VAC, 50,60Hz, integrated emc filter (class c2), led indicator, -10 to +40 degrees c, IP55
This Schneider Electric ATS48D32Q is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26805612280.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altistart 48 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Heavy duty industry and pumps |
| Device short name | ATS48 |
| Utilisation category | AC-53A |
| Ue power supply voltage | 230...415 V - 15...10 % |
| power supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 7.5 kW at 230 V connection in the motor supply line for standard applications | 9 kW at 230 V connection to the motor delta terminals for severe applications | 11 kW at 400 V connection in the motor supply line for severe applications | 15 kW at 230 V connection to the motor delta terminals for standard applications | 15 kW at 400 V connection in the motor supply line for standard applications | 18.5 kW at 400 V connection to the motor delta terminals for severe applications | 22 kW at 400 V connection to the motor delta terminals for standard applications | 5.5 kW at 230 V connection in the motor supply line for severe applications |
| Device connection | In the motor supply line | To the motor delta terminals |
| Protection type | Phase failure: line | Thermal protection: motor | Thermal protection: starter |
| Standards | IEC 60947-4-2 |
| Product certifications | NOM 117 | CSA | SEPRO | CCC | C-Tick | UL | TCF | DNV | GOST |
| Marking | CE |
| Discrete input number | 5 |
| Discrete input type | PTC, 750 Ohm at 25 °C | (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| Discrete input logic | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Discrete output number | 2 |
| Discrete output type | (LO1) logic output 0 V common configurable | (LO2) logic output 0 V common configurable | (R1) relay outputs fault relay NO | (R2) relay outputs end of starting relay NO | (R3) relay outputs motor powered NO |
| Analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Function available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree |
| Height | 275 mm |
| Width | 160 mm |
| Depth | 190 mm |
| Net weight | 4.9 kg |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 | Conducted and radiated emissions level B conforming to IEC 60947-4-2 | Damped oscillating waves level 3 conforming to IEC 61000-4-12 | Electrostatic discharge level 3 conforming to IEC 61000-4-2 | Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Relative humidity | 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) | -10…40 °C (without derating) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating | > 1000...2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.500 cm |
| Package 1 Width | 26.000 cm |
| Package 1 Length | 37.000 cm |
| Package 1 Weight | 5.777 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 58.768 kg |
