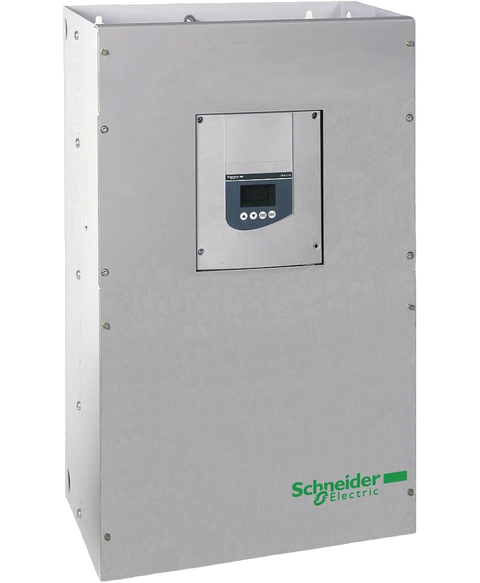

Schneider Electric ATS48C66Y
The ATS48C66Y from Schneider Electric is a soft starter specifically designed for asynchronous motors. This unit can manage motor power up to 630 kW and a maximum horsepower of 600 HP, ideal for heavy-duty industrial use and pumps.
This Schneider Electric ATS48C66Y is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26897298451.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | ALTISTART |
| Part Number | ATS48C66Y |
| EAN | 3389110982527 |
| Weight | 141.00 lbs (63.96 kg) |
| Product | Soft Starter for Asynchronous Motors |
| Maximum Operating Altitude | 1000 meters above sea level |
| Specific Applications | Heavy Duty Industry and Pumps |
| Power Supply Voltage | 208 to 690 V |
| Power Supply Frequency | 50 to 60 Hz |
| Motor Power | Up to 630 kW |
| Max. Horsepower Rating | 600 HP |
| Protection Type | Phase Failure Line, Thermal Protection for Motor, Thermal Protection for Starter |
| Discrete Input Number | 5 |
| Discrete Input Type | PTC, 750 Ohm at 25 °C, includes Stop, Run, LI3, LI4 logic, \u003C= 8 mA |
| Minimum Switching Current | 10 mA with 6 V DC relay outputs |
| Communication Port Protocol | Modbus |
| Communication Data Link | Serial |
| Brand | Schneider Electric |
