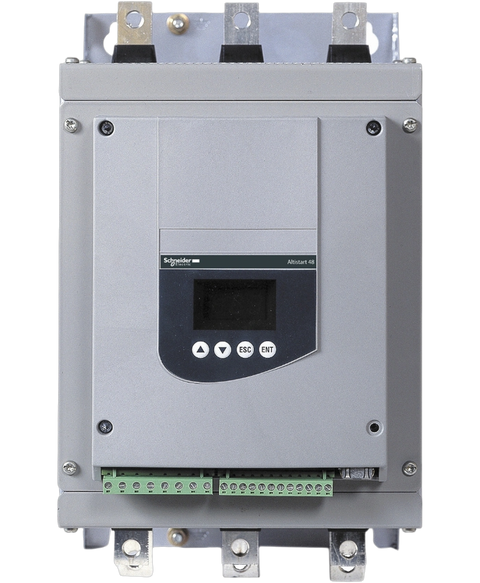

Schneider Electric ATS48C17Y
The ATS48C17Y from Schneider Electric is a soft starter designed for motor applications. It operates with a current rating of 17 A and supports a wide supply voltage range of 208 to 690 VAC, making it suitable for various installations.
This Schneider Electric ATS48C17Y is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26805612549.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Altistart 48 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Heavy duty industry and pumps |
| Device short name | ATS48 |
| Utilisation category | AC-53A |
| Ue power supply voltage | 208...690 V - 15...10 % |
| power supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 110 kW at 500 V for standard applications | 110 kW at 525 V for standard applications | 110 kW at 660 V for severe applications | 110 kW at 690 V for severe applications | 132 kW at 660 V for standard applications | 160 kW at 690 V for standard applications | 37 kW at 230 V for severe applications | 45 kW at 230 V for standard applications | 75 kW at 400 V for severe applications | 75 kW at 440 V for severe applications | 90 kW at 400 V for standard applications | 90 kW at 440 V for standard applications | 90 kW at 500 V for severe applications | 90 kW at 525 V for severe applications |
| Motor power hp | 100 hp at 460 V for severe applications | 125 hp at 460 V for standard applications | 125 hp at 575 V for severe applications | 150 hp at 575 V for standard applications | 40 hp at 208 V for severe applications | 50 hp at 208 V for standard applications | 50 hp at 230 V for severe applications | 60 hp at 230 V for standard applications |
| Device connection | In the motor supply line |
| Protection type | Phase failure: line | Thermal protection: motor | Thermal protection: starter |
| Standards | IEC 60947-4-2 |
| Product certifications | GOST | CCC | C-Tick | TCF | SEPRO | NOM 117 | UL | CSA | DNV |
| Marking | CE |
| Discrete input number | 5 |
| Discrete input type | PTC, 750 Ohm at 25 °C | (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| Discrete input logic | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Discrete output number | 2 |
| Discrete output type | (LO1) logic output 0 V common configurable | (LO2) logic output 0 V common configurable | (R1) relay outputs fault relay NO | (R2) relay outputs end of starting relay NO | (R3) relay outputs motor powered NO |
| Analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Function available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree |
| Height | 340 mm |
| Width | 200 mm |
| Depth | 265 mm |
| Net weight | 12.4 kg |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 | Conducted and radiated emissions level B conforming to IEC 60947-4-2 | Damped oscillating waves level 3 conforming to IEC 61000-4-12 | Electrostatic discharge level 3 conforming to IEC 61000-4-2 | Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Relative humidity | 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) | -10…40 °C (without derating) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating | > 1000...2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 34.0 cm |
| Package 1 Width | 43.0 cm |
| Package 1 Length | 46.0 cm |
| Package 1 Weight | 14.922 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 73.5 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 41.0 kg |
