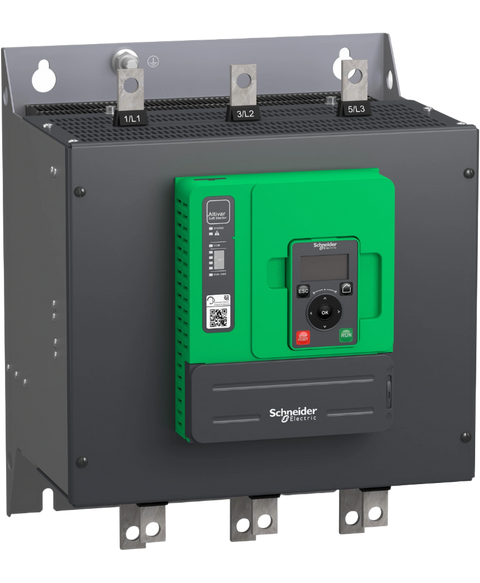

Schneider Electric ATS480C21Y
Soft starter, Altistart 480, 210A, 208 to 690V AC, control supply 110 to 230V AC
This Schneider Electric ATS480C21Y is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26805607203.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,403.55
(inc. GST)
In Stock
| Range of product | Altivar Soft Starter ATS480 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Process and infrastructures |
| Device short name | ATS480 |
| Network number of phases | 3 phases |
| Utilisation category | AC-3A | AC-53A |
| Ue power supply voltage | 208...690 V - 15...10 % |
| power supply frequency | 50...60 Hz - 20...20 % |
| [Ie] rated operational current | Normal duty: 210.0 A (at <40 °C) |
| rated current in heavy duty | 170.0 A at 40 °C for heavy duty |
| IP degree of protection | IP00 |
| Motor power kW | 55.0 kW at 230 V in the motor supply line normal duty | 45.0 kW at 230 V in the motor supply line heavy duty | 110.0 kW at 400 V in the motor supply line normal duty | 90.0 kW at 400 V in the motor supply line heavy duty | 110.0 kW at 440 V in the motor supply line normal duty | 90.0 kW at 440 V in the motor supply line heavy duty | 132.0 kW at 500 V in the motor supply line normal duty | 110.0 kW at 500 V in the motor supply line heavy duty | 132.0 kW at 525 V in the motor supply line normal duty | 110.0 kW at 525 V in the motor supply line heavy duty | 160.0 kW at 660 V in the motor supply line normal duty | 132.0 kW at 660 V in the motor supply line heavy duty | 200.0 kW at 690 V in the motor supply line normal duty | 160.0 kW at 690 V in the motor supply line heavy duty | 110.0 kW at 230 V to the motor delta terminals normal duty | 90.0 kW at 230 V to the motor delta terminals heavy duty | 160.0 kW at 400 V to the motor delta terminals normal duty | 132.0 kW at 400 V to the motor delta terminals heavy duty |
| Motor power hp | 60.0 hp at 208 V normal duty | 50.0 hp at 208 V heavy duty | 75.0 hp at 230 V normal duty | 60.0 hp at 230 V heavy duty | 150.0 hp at 460 V normal duty | 125.0 hp at 460 V heavy duty | 200.0 hp at 575 V normal duty | 150.0 hp at 575 V heavy duty |
| Option card | Communication module for Profibus DP V1 | Communication module for Modbus TCP/EtherNet/IP | Communication module for CANopen daisy chain | Communication module for CANopen Sub-D | Communication module for CANopen open style | Communication module for PROFINET |
| Device connection | In the motor supply line | To the motor delta terminals |
| [Us] control circuit voltage | 110...230 V AC 50/60 Hz - 15...10 % |
| Apparent power | 0.106 kVA |
| Integrated motor overload protection | True |
| motor thermal protection class | Class 10E |
| Protection type | Phase failure: line | Integrated thermal protection: motor | Thermal protection: starter | Current overload: motor | Underload: motor | Excessive starting time, locked rotor: motor | Motor phase loss: motor | Line supply phase loss: line | Line supply phase loss: motor | Thermal protection: motor |
| current limiting %In (5 x Ie maximum) | 150…700 % |
| Rated current pwr loss specification | 210.0 A |
| Power loss static current independent | 25.0 W |
| Power loss per device current dependent | 560.0 W |
| Standards | IEC 60947-4-2 | UL 60947-4-2 | IEC 60664-1 |
| Product certifications | CE | cULus | CCC | UKCA | RCM | EAC | DNV | ABS | BV | CCS |
| Marking | CE | CCC | UKCA | EAC | RCM | CULus |
| [Uc] control circuit voltage | 24 V DC |
| Discrete input number | 4 |
| Discrete input type | (STOP) logic inputs, 3500 Ohm | (RUN) logic inputs, 3500 Ohm | (DI3) programmable as logic input, 3500 Ohm | (DI4) programmable as logic input, 3500 Ohm |
| Input compatibility | STOP: discrete input level 1 PLC conforming to IEC 61131-2 | RUN: discrete input level 1 PLC conforming to IEC 61131-2 | DI3: discrete input level 1 PLC conforming to IEC 61131-2 | DI4: discrete input level 1 PLC conforming to IEC 61131-2 |
| Discrete input logic | Programmable digital input at State 0: < 5 V |
| Relay output number | 3 |
| Relay output type | Relay outputs R1A 1 NO | Relay outputs R1B 1 NO | Relay outputs RIC NO/NC programmable |
| Minimum switching current | 100 mA at 12 V DC for relay outputs |
| Maximum switching current | Relay outputs 2 A at 250 V AC | Relay outputs 2 A at 30 V DC | Relay outputs |
| Discrete output number | 2 |
| Discrete output type | (DQ1) programmable digital output <= 30 V | (DQ2) programmable digital output <= 30 V |
| Output compatibility | Open collector level 1 PLC conforming to IEC 65A-68 |
| Analogue input number | 1 |
| Analogue input type | AI1/PTC PTC/Pt 100 temperature probe | PTC2 PTC/Pt 100 temperature probe | PTC3 PTC/Pt 100 temperature probe |
| Analogue output number | 1 |
| Analogue output type | Current output AQ1: 0...20 mA or 0...10 V, impedance <500 Ohm |
| Communication port protocol | Modbus serial |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | 2-wire RS 485 |
| Transmission rate | 1200...256000 bit/s |
| Transmission frame | RTU |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance for Modbus serial |
| Number of addresses | 0…227 for Modbus serial |
| Method of access | Slave Modbus serial |
| Function available | External bypass control | Pre-heating | Smoke extraction | Multi-motor cascade | Second motor set | User management | Ports and services hardening | Security event logging | Cybersecure firmware update | Single direction |
| Display screen available | True |
| Operating position | Vertical +/- 10 degree |
| Height | 380.0 mm |
| Width | 320.0 mm |
| Depth | 277.0 mm |
| Net weight | 18.2 kg |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 | Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2 | Damped oscillating waves level 3 conforming to IEC 61000-4-12 | Electrostatic discharge level 3 conforming to IEC 61000-4-11 | Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Pollution degree | Level 3 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 690 V |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 | Class 3S2 according to IEC 60721-3-3 |
| Relative humidity | 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) | -15…40 °C (without derating) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating | > 1000...4000 m with current derating 1 % per 100 m |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during storage) | 1.75 mm at 2...9 Hz |
| Maximum deflection under vibratory load (during transport) | 1.75 mm at 2...9 Hz |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum acceleration under vibratory load (during storage) | 15 m/s² at 200...500 Hz | 10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during transport) | 15 m/s² at 200...500 Hz | 10 m/s² at 9...200 Hz |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under shock load (during storage) | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport) | 100 m/s² at 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 50.000 cm |
| Package 1 Width | 40.000 cm |
| Package 1 Length | 60.100 cm |
| Package 1 Weight | 26.500 kg |
