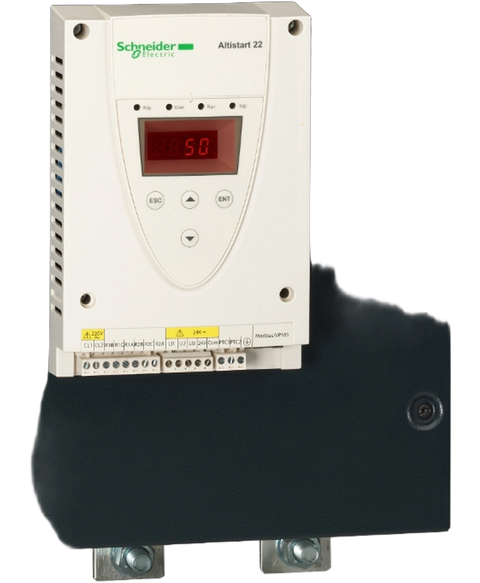

Schneider Electric ATS22C48Q
Soft Starter - ATS22-control 220V - Power 230V(132kW),400...440V(250kW)
This Schneider Electric ATS22C48Q is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL27000075619.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$5,328.60
(inc. GST)
In Stock
| Range of product | Altistart 22 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Pumps and fans |
| Component name | ATS22 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 230...440 V - 15...10 % |
| Motor power kW | 132 kW 230 V | 250 kW 400 V | 250 kW 440 V |
| Factory setting current | 437 A |
| Power dissipation in W | 218 W for standard applications |
| Utilisation category | AC-53A |
| Type of start | Start with torque control (current limited to 3.5 In) |
| IcL starter rating | 480 A for connection in the motor supply line for standard applications |
| IP degree of protection | IP00 |
| Assembly style | With heat sink |
| Function available | Internal bypass |
| Supply voltage limits | 195…484 V |
| Supply frequency | 50...60 Hz - 10...10 % |
| Network frequency | 45...66 Hz |
| Device connection | In the motor supply line | To the motor delta terminals |
| [Uc] control circuit voltage | 230 V - 15...10 % 50/60 Hz |
| Control circuit consumption | 20 W |
| Discrete output number | 2 |
| Discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O | Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Minimum switching current | 100 mA at 12 V DC (relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs | 5 A 30 V DC resistive 1 relay outputs | 2 A 250 V AC inductive 0.4 20 ms relay outputs | 2 A 30 V DC inductive 7 ms relay outputs |
| Discrete input number | 3 |
| Discrete input type | (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete input voltage | 24 V <= 30 V |
| Discrete input logic | Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Output current | 0.4...1 Icl adjustable |
| PTC probe input | 750 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Installed device | 31 |
| Protection type | Phase failure: line | Thermal protection: motor | Thermal protection: starter |
| Marking | CE |
| Type of cooling | Forced convection |
| Operating position | Vertical +/- 10 degree |
| Height | 455 mm |
| Width | 304 mm |
| Depth | 339.7 mm |
| Net weight | 50 kg |
| Motor power range AC-3 | 110…220 kW at 200…240 V 3 phases | 250…500 kW at 380…440 V 3 phases |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 | Damped oscillating waves level 3 conforming to IEC 61000-4-12 | Electrostatic discharge level 3 conforming to IEC 61000-4-2 | Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Standards | IEC 60947-4-2 |
| Product certifications | GOST | CSA | UL | C-Tick | CCC |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 | 1.5 mm (f= 2…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Noise level | 56 dB |
| Pollution degree | Level 2 conforming to IEC 60664-1 |
| Relative humidity | 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) | 40…60 °C (with current derating 2.2 % per °C) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating | > 1000...< 2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 54.5 cm |
| Package 1 Width | 40.0 cm |
| Package 1 Length | 57.5 cm |
| Package 1 Weight | 40.0 kg |
