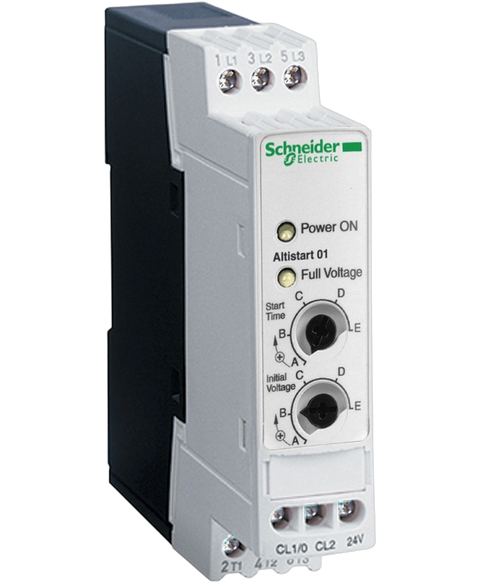

Schneider Electric ATS01N103FT
The ATS01N103FT asynchronous motor from Schneider Electric's Altivar series operates with a single-phase input. It is capable of handling supply voltages between 110 V and 480 V, delivering motor power of 1.1 kW, while requiring 15 A at nominal load conditions.
This Schneider Electric ATS01N103FT is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Soft starters range and is referenced internally as PartLogic SKU PL26805594641.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$534.41
(inc. GST)
In Stock
| Range of product | Altistart 01 |
| Product destination | Asynchronous motors |
| Product or component type | Soft starter |
| Product specific application | Simple machine |
| Device short name | ATS01 |
| Network number of phases | 1 phase |
| [Us] rated supply voltage | 110...480 V - 10...10 % |
| Motor power kW | 0.37 kW, 3 phases at 230 V | 0.55 kW, 3 phases at 230 V | 1.1 kW, 3 phases at 400 V | 0.37 kW, 1 phase at 230 V |
| Motor power hp | 0.5 hp, 3 phases at 230 V | 0.5 hp, 3 phases at 460 V | 1.5 hp, 3 phases at 460 V |
| IcL starter rating | 3 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Current consumption | 15 A at nominal load |
| Type of start | Start with voltage ramp |
| Power dissipation in W | 19 W in transient state | 4 W at full load and at end of starting |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Supply voltage limits | 99…528 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | 110 V AC +/- 10 % at 30 mA | 24 V AC/DC +/- 10 % at 25 mA | 240 V AC +/- 10 % at 65 mA |
| Starting time | 1 s / 100 | 5 s / 20 | Adjustable from 1 to 5 s |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete output current | 2 A DC-13 | 3 A AC-15 |
| tightening torque | 0.8 N.m |
| Electrical connection | Cage type connector - rigid 1 2.5 mm² AWG 14 control circuit | Cage type connector - rigid with cable end 1 2.5 mm² AWG 14 power circuit | Cage type connector - rigid without cable end 2 1 mm² AWG 17 control circuit | Cage type connector - rigid without cable end 2 1 mm² AWG 17 power circuit | Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit | Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit | Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit | Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit | Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit | Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit | Cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit | Cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 100 mm |
| Width | 23 mm |
| Depth | 100 mm |
| Net weight | 0.16 kg |
| Compatibility code | ATS01N1 |
| Power range | 0…0.5 kW at 200…240 V 1 phase | 0…0.5 kW at 200…240 V 3 phases | 0.55…1 kW at 200…240 V 3 phases | 1.1…2 kW at 380…440 V 3 phases |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level B conforming to CISPR 11 | Conducted and radiated emissions level B conforming to IEC 60947-4-2 | Damped oscillating waves level 3 conforming to IEC 61000-4-12 | Electrostatic discharge level 3 conforming to IEC 61000-4-2 | EMC immunity level 3 conforming to EN 50082-1 | EMC immunity level B conforming to EN 50082-2 | Harmonics level 3 conforming to IEC 1000-3-2 | Harmonics level 3 conforming to IEC 1000-3-4 | Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 | Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 | Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | CSA | GOST | C-Tick | UL | CCC |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to EN/IEC 60947-4-2 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 | 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) | 40…50 °C (with current derating of 2 % per °C) |
| Ambient air temperature for storage | -25…70 °C conforming to EN/IEC 60947-4-2 |
| Operating altitude | <= 1000 m without derating | > 1000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 10.300 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 172.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.491 kg |
