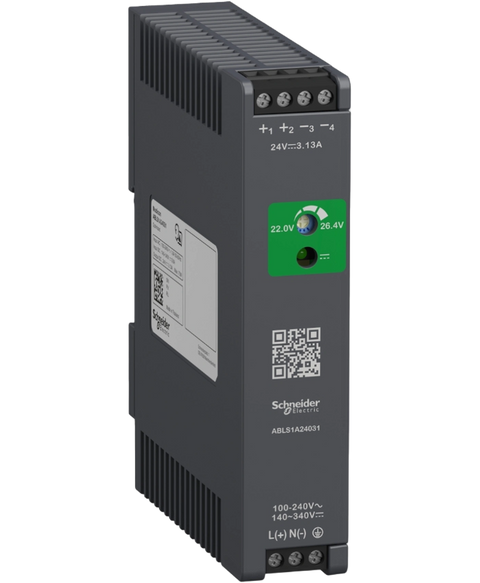

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric ABLS1A24031
Regulated Power Supply, 100-240V AC, 24V 3.1 A, single phase, Optimized
This Schneider Electric ABLS1A24031 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805660319.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$228.21
(inc. GST)
In Stock
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure material | Plastic |
| Nominal input voltage | 100...240 V AC single phase | 100...240 V AC phase to phase | 140...340 V DC |
| Rated power in W | 75 W |
| Output voltage | 24 V DC |
| Power supply output current | 3.13 A |
| Input voltage limits | 85...264 V AC without temperature derating | 120...375 V DC without temperature derating |
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN | TT | IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 5 A | External protection (recommended) 20 A Curve C | External protection (recommended) 13 A Curve B | External protection (recommended) 10 A Curve C |
| Inrush current | 40.0 A at 115 V | 80.0 A at 230 V |
| Power factor | 0.55 at 115 V AC | 0.45 at 230 V AC |
| Efficiency | 88 % at 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| Power dissipation in W | 15 W |
| Current consumption | < 1.8 A 115 V AC | < 1 A 230 V AC | < 0.8 A 140 V DC |
| Turn-on time | < 1.2 s |
| Holding time | > 20 ms 115 V AC | > 40 ms 230 V AC |
| Startup with capacitive loads | 5000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 25 °C, full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset | Against over temperature, protection technology: manual reset | Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) for output | Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) for input |
| Line and load regulation | < 0.5 % at 0 to 100 % load at 25 °C | < 1 % at full voltage range in line at 25 °C |
| Status LED | 1 LED (green) output voltage |
| Depth | 102 mm |
| Height | 123.6 mm |
| Width | 27 mm |
| Net weight | 0.22 kg |
| Output coupling | Parallel | Serial |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | Double-profile DIN rail |
| Supply | SELV conforming to IEC 60950-1 | SELV conforming to IEC 60204-1 | SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
| Standards | IEC 62368-1 | EN/IEC 61010-1 | EN 61010-2-201 | EN/IEC 61204-3 | IEC 61000-6-1 | IEC 61000-6-2 | IEC 61000-6-3 | IEC 61000-6-4 | IEC 61000-3-2 | EN 61000-3-3 | UL 62368-1 | UL 61010-1 | UL 61010-2-201 | CSA C22.2 No 62368-1 | CSA C22.2 No 61010-1 | CSA C22.2 No 61010-2-201 |
| Product certifications | CE | CUL listed | CUL recognized | RCM | CB Scheme | EAC | KC | NEC: class 2 |
| Operating altitude | < 5000 m |
| Shock resistance | 150 m/s² for 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…-10 °C with current derating of 1 % per °C mounting position A < 2000 m | -10…40 °C without derating mounting position A 115 V AC < 2000 m | -10…50 °C without derating mounting position A 230 V AC < 2000 m | 40…70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m | 50…70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m |
| Electrical shock protection class | Class I |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6 | 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 | Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 | Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 | Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 | Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 | Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 | Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 | Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 | Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 | Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 | Immunity to voltage dips conforming to IEC 61000-4-11 | Disturbing field emission conforming to EN 55016-2-3 | Limits for harmonic current emissions conforming to IEC 61000-3-2 | conforming to EN 55016-1-2 | conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions conforming to IEC 61000-6-3 | Radiated emissions conforming to IEC 61000-6-4 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.700 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 323.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 22 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.634 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 528 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 195.216 kg |
