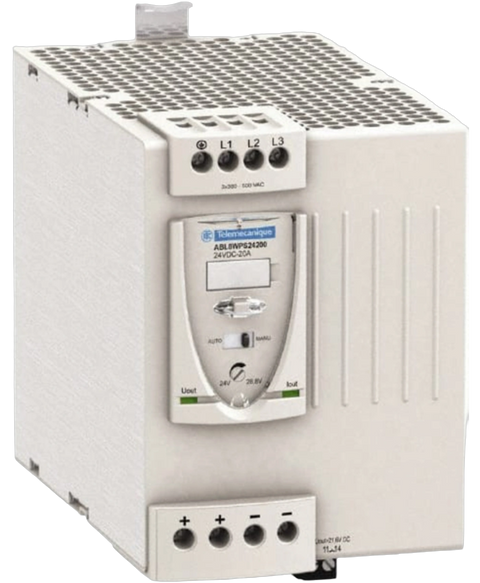

Schneider Electric ABL8WPS24200
regulated SMPS - 3-Phase - 380..500 V AC - 24 V - 20 A
This Schneider Electric ABL8WPS24200 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805618543.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Current - Output 1 | 20 A |
| Depth | 125 mm |
| Efficiency | 100 % |
| Height | 125 mm |
| Max Input Voltage | 550 V |
| Max Operating Temperature | 60 °C |
| Max Output Current | 20 A |
| Max Output Power | 480 W |
| Max Output Voltage | 28.8 V |
| Max Voltage Rating (AC) | 500 V |
| Min Input Voltage | 320 V |
| Min Input Voltage (AC) | 380 V |
| Min Operating Temperature | -25 °C |
| Min Output Voltage | 24 V |
| Mount | DIN Rail |
| Nominal Output Voltage | 24 V |
| Number of Outputs | 1 |
| Output Current | 20 A |
| Output Power | 480 W |
| Output Voltage | 24 V |
| Power Rating | 480 W |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Voltage - Output 1 | 24 V |
| Weight | 1.6 kg |
| Width | 95 mm |
