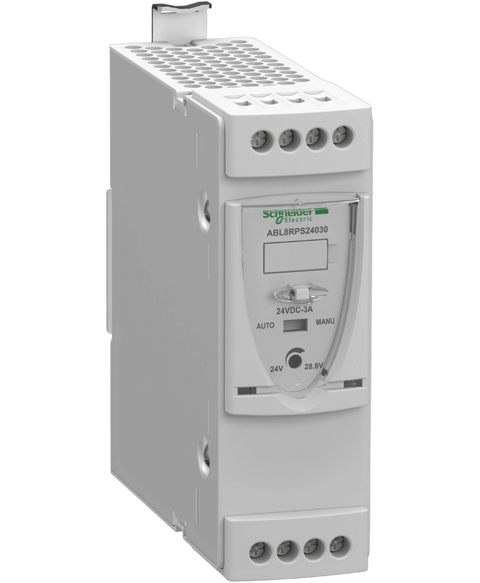

Schneider Electric ABL8RPS24030
The ABL8RPS24030 from Schneider Electric is a switch mode power supply designed for efficient operation in industrial environments. This regulated unit can handle a wide input voltage range, providing a stable output of 24 VDC with a maximum current output of 3A, totaling 72 W.
This Schneider Electric ABL8RPS24030 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26801449550.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1 | 200...500 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 72 W |
| Output voltage | 24 V DC |
| Power supply output current | 3 A |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 170...550 V AC | 85...132 V AC |
| Inrush current | 30 A |
| Power factor | 0.51 at 240 V AC | 0.59 at 120 V AC |
| Efficiency | 87 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 7.8 W |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset | Against overvoltage, protection technology: 30...32 V, manual reset | Against short-circuits, protection technology: manual or automatic reset | Against undervoltage, protection technology: tripping if U < 21.6 V | Thermal, protection technology: automatic reset |
| Connections - terminals | Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection | Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection | Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection | Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection |
| Status LED | 1 LED (green and red) output voltage | 1 LED (green, red and orange) output current |
| Depth | 125 mm |
| Height | 125 mm |
| Width | 45 mm |
| Net weight | 0.3 kg |
| Output coupling | Parallel | Series |
| Marking | CE |
| Mounting support | 35 x 15 mm symmetrical DIN rail | 35 x 7.5 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 | SELV conforming to IEC 60204-1 | SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3500 V with between input and ground | 4000 V with between input and output | 500 V with between output and ground |
| Standards | CSA C22.2 No 60950-1 | UL 508 | EN/IEC 62368-1 |
| Product certifications | CCSAus | EAC | UL | RCM | KC |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 | EMC conforming to IEC 61000-6-3 | EMC conforming to IEC 61000-6-2 | EMC conforming to IEC 61000-6-4 | EMC conforming to EN/IEC 61204-3 | Safety conforming to IEC 60950-1 | Safety conforming to EN/IEC 61204-3 |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 50…60 °C with derating factor mounting position A < 2000 m | -25…50 °C without derating mounting position A < 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 14.500 cm |
| Package 1 Weight | 776.000 g |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 106.120 kg |
