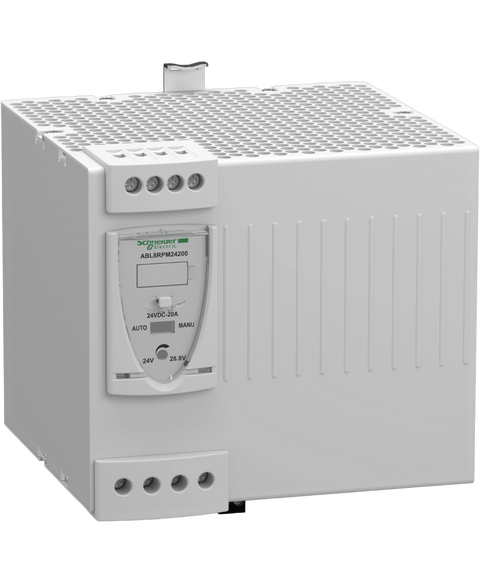

Schneider Electric ABL8RPM24200
regulated SMPS - 1 or 2-Phase - 100..240 V - 24 V - 20 A
This Schneider Electric ABL8RPM24200 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26801447181.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1 | 200...240 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 85...132 V AC | 170...264 V AC |
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC | 0.69 at 120 V AC |
| Efficiency | 88 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 57.6 W |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset | Against overvoltage, protection technology: 30...32 V, manual reset | Against short-circuits, protection technology: manual or automatic reset | Against undervoltage, protection technology: tripping if U < 21.6 V | Thermal, protection technology: automatic reset |
| Connections - terminals | Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay | Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection | Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection | Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection |
| Status LED | 1 LED (green and red) output voltage | 1 LED (green, red and orange) output current |
| Depth | 145 mm |
| Height | 125 mm |
| Width | 146 mm |
| Net weight | 1.6 kg |
| Output coupling | Series | Parallel |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail | 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 | SELV conforming to IEC 60204-1 | SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 2500 V with between input and ground | 3000 V with between input and output | 500 V with between output and ground |
| Standards | CSA C22.2 No 60950-1 | UL 508 | EN/IEC 62368-1 |
| Product certifications | CCSAus | EAC | KC | RCM | UL |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 | EMC conforming to IEC 61000-6-3 | EMC conforming to EN 55024 | EMC conforming to IEC 61000-6-4 | EMC conforming to EN/IEC 61204-3 | Safety conforming to IEC 60950-1 | Safety conforming to EN/IEC 61204-3 |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 | IP10 |
| Ambient air temperature for operation | 50…60 °C with derating factor mounting position A < 2000 m | -25…50 °C without derating mounting position A < 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.000 cm |
| Package 1 Width | 18.500 cm |
| Package 1 Length | 19.500 cm |
| Package 1 Weight | 2.811 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 114.956 kg |
