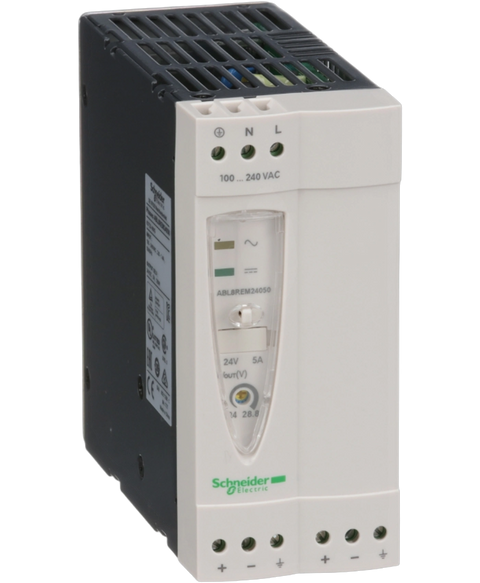

Schneider Electric ABL8REM24050
The ABL8REM24050 power supply by Schneider Electric operates efficiently within an input voltage range of 100-240V AC. It provides an output of 24 VDC and delivers a current of 5 amperes, supporting a power rating of 120 watts.
This Schneider Electric ABL8REM24050 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26801389739.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase, terminal(s): L1-L2 | 100...240 V AC single phase, terminal(s): N-L1 | 110...220 V DC |
| Rated power in W | 120 W |
| Output voltage | 24 V DC |
| Power supply output current | 5 A |
| Input voltage limits | 85...264 V AC | 100...250 V AC |
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 30 A |
| Power factor | 0.65 at 24 V DC |
| Efficiency | 85 % |
| Output voltage adjustment | 100...120 % adjustable |
| Power dissipation in W | 21.2 W |
| Current consumption | 1.2 A 240 V AC | 1.9 A 100 V AC |
| Output protection type | Against overload, protection technology: 1.1 x In | Against overvoltage, protection technology: tripping if U > 1.5 x Un | Against short-circuits, protection technology: automatic reset | Against undervoltage, protection technology: tripping if U < 0.8 x Un |
| Connections - terminals | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection | Screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection | Screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for input ground connection | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output ground connection |
| Status LED | 1 LED (green) output voltage | 1 LED (orange) input voltage |
| Depth | 120 mm |
| Height | 120 mm |
| Width | 54 mm |
| Net weight | 1 kg |
| Output coupling | Series | Parallel |
| Marking | CE |
| Mounting support | 35 x 15 mm symmetrical DIN rail | 75 x 7.5 mm symmetrical DIN rail | 35 x 7.5 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 | SELV conforming to IEC 60204-1 | SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and ground | 3000 V with between input and output | 500 V with between output and ground | 500 V with between outputs |
| Standards | UL 508 | CSA C22.2 No 60950-1 | EN/IEC 62368-1 |
| Product certifications | RCM | EAC | KC | CCSAus | UL |
| Environmental characteristic | EMC conforming to EN 50081-1 | EMC conforming to EN 50082-2 | EMC conforming to EN 55024 | Safety conforming to EN/IEC 60950 |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 0…50 °C without derating mounting position A < 2000 m | 50…60 °C with derating factor mounting position A < 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.7 cm |
| Package 1 Width | 13.3 cm |
| Package 1 Length | 14.5 cm |
| Package 1 Weight | 803 g |
