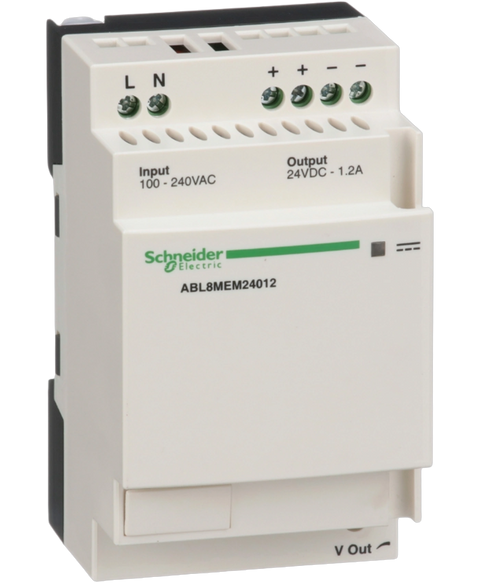

Schneider Electric ABL8MEM24012
regulated SMPS - 1 or 2-Phase - 100..240 V AC - 24 V - 1.2 A
This Schneider Electric ABL8MEM24012 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805558851.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase, terminal(s): L1-L2 | 100...240 V AC single phase, terminal(s): N-L1 | 120...250 V DC |
| Rated power in W | 30 W |
| Output voltage | 24 V DC |
| Power supply output current | 1.2 A |
| Input voltage limits | 85...264 V AC |
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 20 A |
| Power factor | 0.5 at 24 V DC |
| Efficiency | 82 % |
| Output voltage adjustment | 22.2...28.8 V adjustable |
| Power dissipation in W | 6.6 W |
| Current consumption | 0.4 A 240 V AC | 0.65 A 100 V AC |
| Residual ripple | 250 mV |
| Output protection type | Against short-circuits |
| Connections - terminals | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection | Screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection |
| Status LED | 1 LED (green) output voltage |
| Depth | 59 mm |
| Height | 100 mm |
| Width | 54 mm |
| Net weight | 0.195 kg |
| Output coupling | Parallel | Series |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail | panel 2 screws, diameter : 4 mm | 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 | SELV conforming to IEC 60204-1 | SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and output |
| Standards | UL 508 | CSA C22.2 No 60950-1 | EN/IEC 62368-1 |
| Product certifications | TUV 60950-1 | EAC | RCM | KC | CCSAus | CSA 22-2 No 950 | CULus 508 |
| Environmental characteristic | EMC conforming to EN 55022 class B | EMC conforming to IEC 61000-6-3 | EMC conforming to IEC 61000-6-2 | EMC conforming to EN/IEC 61204-3 | Safety conforming to IEC 60950-1 |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C without derating mounting position A < 2000 m | 55…70 °C with derating factor mounting position A < 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 10 cm |
| Package 1 Weight | 229 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 56 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 13.367 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 488 |
| Package 3 Height | 80 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 116.8 kg |
