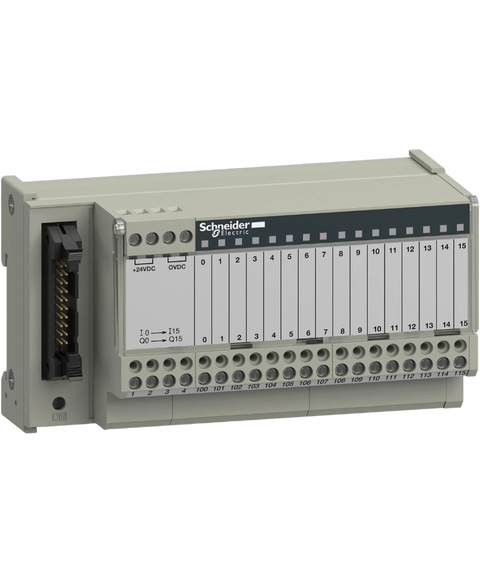

Schneider Electric ABE7H16R11
The Schneider Electric ABE7H16R11 is a passive connection sub-base designed for efficient connectivity within the Modicon series. It supports a rated supply voltage ranging from 19 to 30 volts DC and features 16 channels, each equipped with a single terminal and an LED for status indication.
This Schneider Electric ABE7H16R11 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26893976505.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | I/O sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end | Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid | Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end | Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end | Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| supply voltage type | DC |
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (green) channel status | 1 LED (green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Connector type | HE-10 |
| Pin number | 20 pins |
| Fixing mode | By clips (35 mm symmetrical DIN rail) | By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 125 mm |
| Net weight | 0.274 kg |
| Product certifications | DNV | UL | GL | CSA | EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2 | 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.100 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 13.600 cm |
| Package 1 Weight | 282.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.902 kg |
