Schneider Electric ABE7CPA02

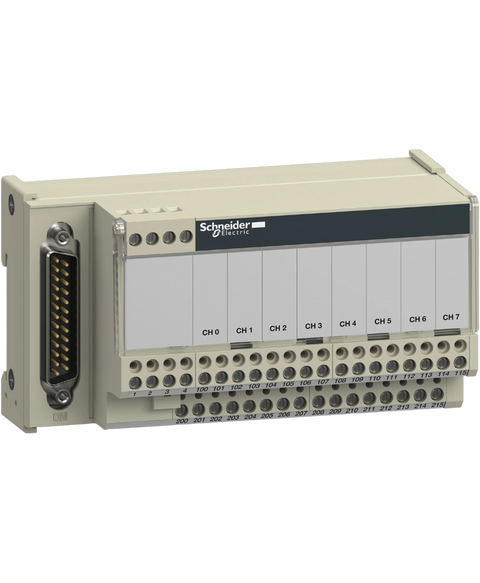

The ABE7CPA02 from Schneider Electric is a communication module designed for use within the Modicon series. It allows for the management of both analog and counter channels and features a total of eight channels.
This Schneider Electric ABE7CPA02 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801467265.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon ABE7 |
| Product or component type | Connection sub-base for counter and analogue channels |
| Number of channels | 8 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end | Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid | Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end | Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end | Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Function of module | Analogue input current, compatible with Premium | Analogue input voltage, compatible with Premium | Pt 100, compatible with Premium |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) | By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.29 kg |
| Product certifications | GL | DNV | UL | CSA | EAC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2 | 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | 0…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.100 cm |
| Package 1 Width | 8.200 cm |
| Package 1 Length | 13.600 cm |
| Package 1 Weight | 301.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.683 kg |
