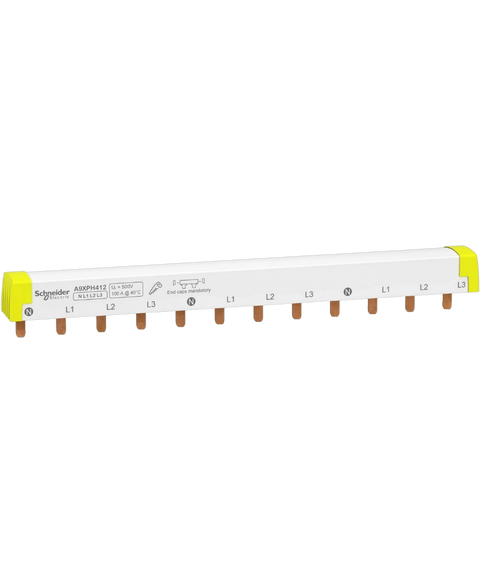

Schneider Electric A9XPH412
Comb iC60,STI 4P 12 modules
This Schneider Electric A9XPH412 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26805619144.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Acti9 |
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 3L + N |
| Length in 18 mm modules | 12 |
| Standards | EN/IEC 61439-1 |
| Number of ways | 3 ways N + 3 L |
| Distribution type | N L1 L2 L3 |
| Poles configuration for 1 way | 1 x 3P + N | 1 x 4P |
| Connection pitch | 18 mm |
| Connector type | Tooth |
| Distance between way | 72 mm |
| Marking | N L1 L2 L3 |
| Insulation | Insulated |
| Device presentation | Cuttable |
| [Ie] rated operational current | 100 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
| Mounting location | Top or bottom on tunnel type terminals | Top or bottom on double terminal |
| 9 mm pitches | 24 |
| Width | 220 mm |
| Colour | White (RAL 9003) |
| Range compatibility | Acti9 iC60 | Acti9 iK60 | Acti9 iID | Acti9 iID K | Acti9 iSW | Acti9 iSW-NA | Multi9 C60 |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 conforming to IEC 60947-7-1 |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.900 cm |
| Package 1 Width | 2.200 cm |
| Package 1 Length | 21.300 cm |
| Package 1 Weight | 129.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 6.200 cm |
| Package 2 Width | 9.100 cm |
| Package 2 Length | 24.800 cm |
| Package 2 Weight | 702.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 40 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.860 kg |
