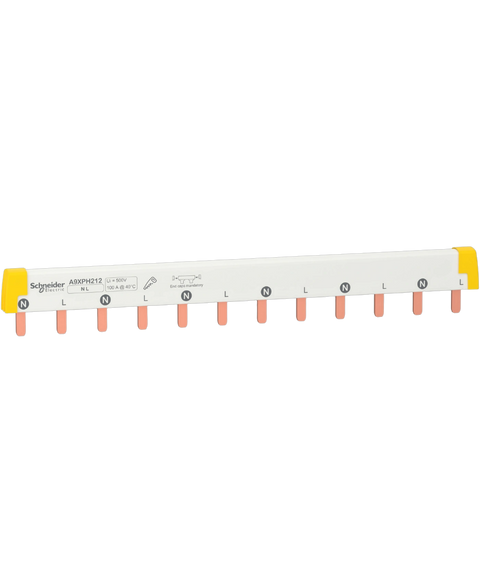

Schneider Electric A9XPH212
Acti9 - comb busbar - 1L+N - 18 mm pitch - 12 modules - 100 A
This Schneider Electric A9XPH212 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26801432383.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Acti9 |
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 1L + N |
| Length in 18 mm modules | 12 |
| Standards | EN/IEC 61439-1 |
| Number of ways | 6 ways N + 1 L |
| Distribution type | N L |
| Poles configuration for 1 way | 1 x 1P + N | 1 x 2P |
| Connection pitch | 18 mm |
| Connector type | Tooth |
| Distance between way | 36 mm |
| Marking | N L |
| Insulation | Insulated |
| Device presentation | Cuttable |
| [Ie] rated operational current | 100 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
| Mounting location | Top or bottom on tunnel type terminals | Top or bottom on double terminal |
| 9 mm pitches | 24 |
| Width | 220 mm |
| Colour | White (RAL 9003) |
| Range compatibility | Acti9 iC60 | Acti9 iK60 | Acti9 iID | Acti9 iID K | Acti9 iSW | Acti9 iSW-NA | Multi9 C60 |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 conforming to IEC 60947-7-1 |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 21.4 cm |
| Package 1 Weight | 79 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 6.2 cm |
| Package 2 Width | 8.8 cm |
| Package 2 Length | 24.8 cm |
| Package 2 Weight | 460 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 7.821 kg |
