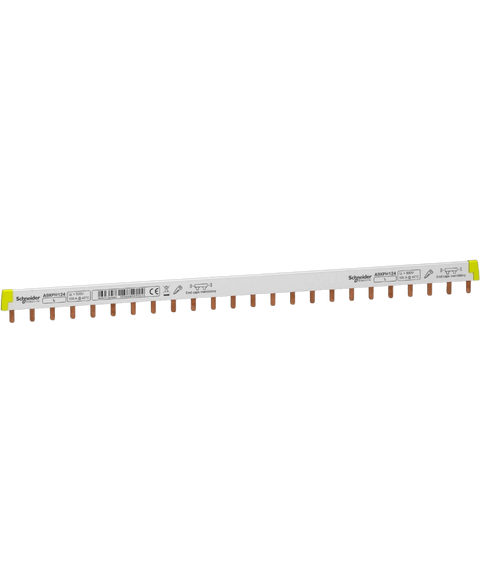

Schneider Electric A9XPH124
Acti9 - comb busbar - 1L - 18 mm pitch - 24 modules - 100A
This Schneider Electric A9XPH124 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26801460185.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Acti9 |
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 1L |
| Length in 18 mm modules | 24 |
| Standards | EN/IEC 61439-1 |
| Number of ways | 24 ways 1 L |
| Distribution type | L |
| Poles configuration for 1 way | 1 x 1P |
| Connection pitch | 18 mm |
| Connector type | Tooth |
| Distance between way | 18 mm |
| Marking | L |
| Insulation | Insulated |
| Device presentation | Cuttable |
| [Ie] rated operational current | 100 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
| Mounting location | Top or bottom on tunnel type terminals | Top or bottom on double terminal |
| 9 mm pitches | 48 |
| Width | 430 mm |
| Colour | White (RAL 9003) |
| Range compatibility | Acti9 iC60 | Acti9 iK60 | Acti9 iID | Acti9 iID K | Acti9 iSW | Acti9 iSW-NA | Multi9 C60 |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 conforming to IEC 60947-7-1 |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.500 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 42.700 cm |
| Package 1 Weight | 101.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.000 cm |
| Package 2 Width | 8.700 cm |
| Package 2 Length | 46.700 cm |
| Package 2 Weight | 1.121 kg |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 11.795 kg |
