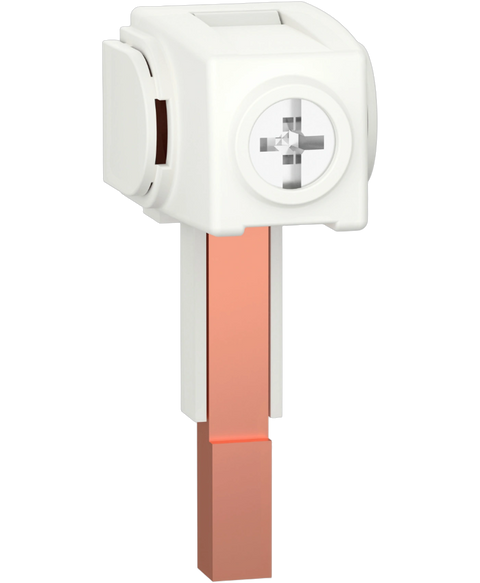

Schneider Electric A9XPCM04
Circuit breaker connector, 100A, monoconnect, for 3p+n comb busbar, set of 4
This Schneider Electric A9XPCM04 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26801430915.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| range of product | Acti9 |
| Product name | Linergy FH |
| Product or component type | Connector |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P + N |
| Quantity per set | Set of 4 |
| Comb busbar and distribution block compatibility | Monoconnect |
| Standards | EN/IEC 61439-1 |
| [In] rated current | 100 A |
| Colour | White (RAL 9003) |
| Connections - terminals | Screw clamp terminals top connector35 mm² |
| Tightening torque | 4 N.m |
| Range compatibility | Acti9 iC60 comb busbar | Acti9 iK60 comb busbar | Acti9 iDPN comb busbar | Acti9 iDPN Vigi comb busbar | Acti9 iID comb busbar | Acti9 iID K comb busbar | Acti9 iSW comb busbar | Acti9 iSW-NA comb busbar | Acti9 STI comb busbar |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 62.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6.617 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 63.936 kg |
