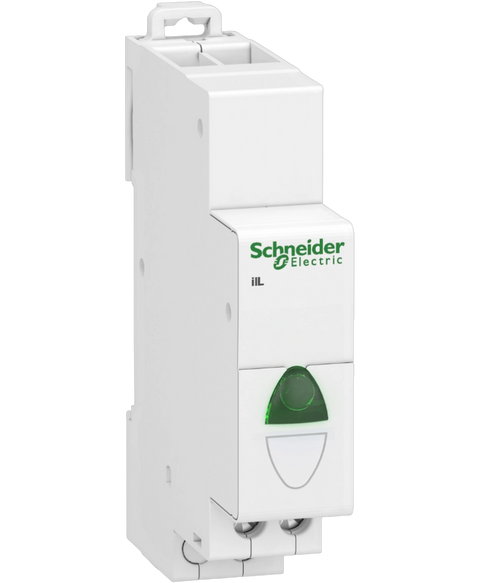

Schneider Electric A9E18321
Acti9 iIL single indicator light - Green - 110-230 Vac
This Schneider Electric A9E18321 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26895390835.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| range of product | Acti9 |
| Product name | Acti9 iIL |
| Product or component type | Modular pilot light |
| Device short name | iIL |
| [Us] rated supply voltage | 110...230 V AC at 50/60 Hz | 110...130 V DC |
| indicator light | 1 LED green, service life 100000 h of constant lighting efficiency (consumption 0.3 W) |
| Mounting mode | Fixed |
| Mounting support | Symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Upside: ProDis |
| 9 mm pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 69.5 mm |
| Colour | White (RAL 9003) |
| Auxiliary connection terminal | Tunnel type terminal 1 cable(s) rigid 0.5 mm² | Tunnel type terminal 2 cable(s) rigid 2.5 mm² | Tunnel type terminal 1 cable(s) flexible 0.5 mm² | Tunnel type terminal 2 cable(s) flexible 2.5 mm² | Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm² |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Standards | IEC 60947-5-1 |
| IP degree of protection | IP2 | IPxx B |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 38.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 23.500 cm |
| Package 2 Weight | 514.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.124 kg |
