Schneider Electric A9A26946

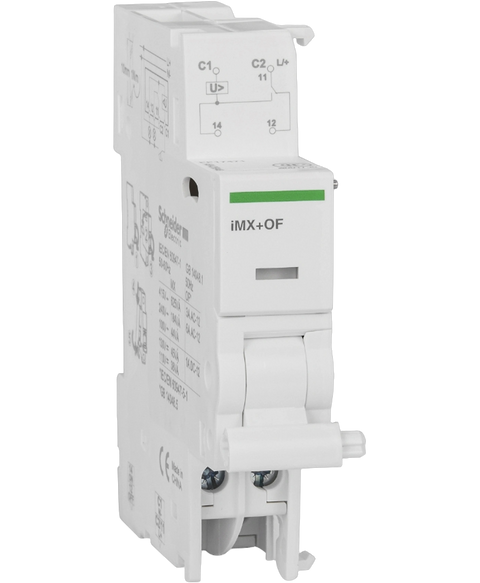

shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 100...415 VAC
This Schneider Electric A9A26946 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26904458330.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| range of product | Acti9 |
| Product or component type | Shunt trip release with OC contact |
| Device short name | iMX+OF |
| Signal contacts composition | 1 C/O |
| [In] rated current | AC-12 3 A at 415 V, AC 50 Hz | AC-12 6 A at 100 V, AC 50 Hz | AC-12 6 A at 230 V, AC 50 Hz | DC-12 1 A at 110 V, DC | DC-12 1 A at 130 V, DC |
| [Uc] control circuit voltage | 100...415 V AC 50/60 Hz | 110...130 V DC |
| 9 mm pitches | 2 |
| Range compatibility | Acti9 iC60H RCBO | Acti9 iC60H RCBO PoN | Acti9 iC60H2 RCBO | Acti9 iC60N RCBO | Acti9 iKQE RCBO | Acti9 iCVm40 | Acti9 iCVr40 | Acti9 iDDm40 |
| Local signalling | Action indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Width | 18 mm |
| Colour | White |
| Connections - terminals | Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable end | Clamp terminal - 1 cable(s) 6 mm² - rigid | Clamp terminal - 2 cable(s) 2.5 mm² - rigid | Clamp terminal - 1 cable(s) 4 mm² - flexible |
| Tightening torque | 1 N.m |
| Standards | EN/IEC 60947-1 | EN/IEC 60947-5-1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 78 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 27 cm |
| Package 2 Weight | 678 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.65 kg |
