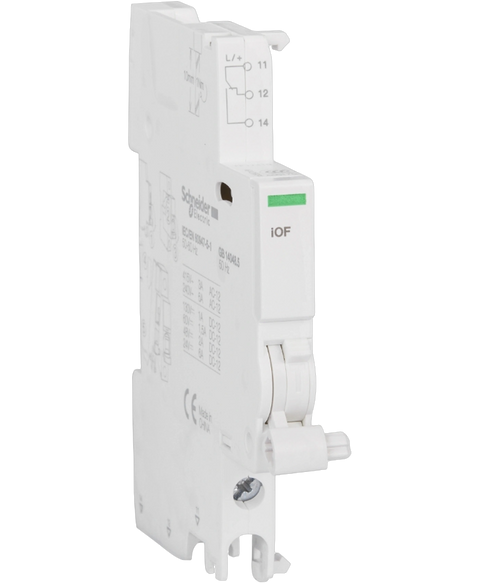

Schneider Electric A9A26924
auxiliary contact, Acti9, iOF, 1 OC, AC,DC
This Schneider Electric A9A26924 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26801429380.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| range of product | Acti9 |
| Product or component type | OC contact |
| Device short name | iOF |
| Signal contacts composition | 1 C/O |
| [In] rated current | AC-12 6 A at 240 V, AC 50/60 Hz | AC-12 3 A at 415 V, AC 50/60 Hz | DC-12 2 A at 48 V, DC | DC-12 1.5 A at 60 V, DC | DC-12 1 A at 130 V, DC | DC-12 6 A at 24 V, DC |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 |
| Range compatibility | Acti9 iC60H RCBO | Acti9 iC60H RCBO PoN | Acti9 iC60H2 RCBO | Acti9 iC60N RCBO | Acti9 iKQE RCBO |
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 86 mm |
| Width | 9 mm |
| Depth | 73 mm |
| Net weight | 32 g |
| Colour | White |
| Connections - terminals | Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² - rigid | Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - flexible | Screw clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigid | Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule |
| Wire stripping length | 10 mm |
| Tightening torque | 1 N.m |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.8 cm |
| Package 1 Width | 2 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 40 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.5 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 27.2 cm |
| Package 2 Weight | 570 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.35 kg |
