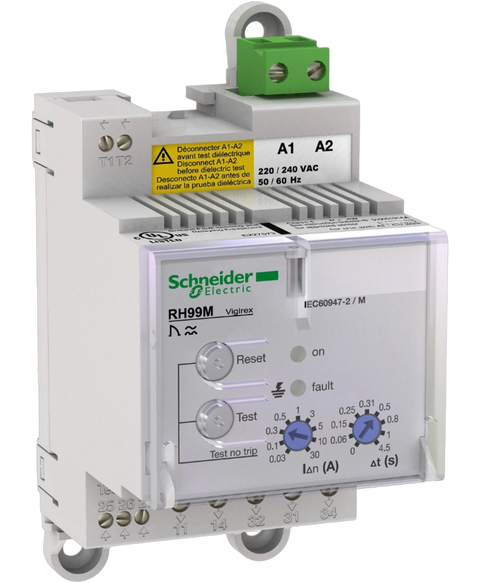

Schneider Electric 56173
residual current protection relay, Vigirex RH99M, 30 mA to 30 A, 220,240 VAC 50,60 Hz, DIN rail mounting
This Schneider Electric 56173 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26928081820.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$756.96
(inc. GST)
In Stock
| Range | VigiPacT |
| Device short name | RH99M |
| Product or component type | Residual current protection relay |
| Relay application | Protection relay |
| Mounting support | DIN rail |
| Earth-leakage protection class | Type A |
| Type of setting | Selector |
| Residual earth-leakage sensitity adjustment type | Adjustable 9 settings |
| Earth-leakage sensitivity | 0.03…30 A |
| Earth-leakage time delay | Instantaneous for 0.03 A | Adjustable 9 settings 0…4.5 s for 0.03…30 A |
| Current sensors compatibility | VigiPacT TOA earth leakage current sensor | VigiPacT A earth leakage current sensor | VigiPacT L earth leakage current sensor |
| [Ithe] conventional enclosed thermal current | 8 A |
| Minimum load | 10 mA at 12 V |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz 55...110 % |
| Power consumption in VA | 4 VA |
| Monitored distribution system | 1000 V - AC at 50/60 Hz (maximum) | 1000 V - AC at 400 Hz (maximum) |
| Earthing system | TN-S | TT | IT |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Reset | Manual reset |
| Test function | Remote test | Local |
| Monitoring | Electronics (continuous) | Power supply (continuous) | Relay/sensor link (continuous) |
| Type of measurement | Earth fault current internal measurement, range: 80...100 % |
| Tamperproof of settings | Protected by sealable cover |
| Connections - terminals | Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12 | Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12 | Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12 | Fault: screw terminal cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12 | Fault: screw terminal cable(s) 0.2…4 mm² rigid AWG 24...AWG 12 | Fault: screw terminal cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12 | Relay test and fault reset: screw terminal cable(s) 0.14…1 mm² flexible AWG 26...AWG 16 | Relay test and fault reset: screw terminal cable(s) 0.14…1.5 mm² rigid AWG 26...AWG 16 | Relay test and fault reset: screw terminal cable(s) 0.25…0.5 mm² flexible AWG 26...AWG 16 | Sensor: screw terminal cable(s) 0.14…1 mm² flexible AWG 26...AWG 16 | Sensor: screw terminal cable(s) 0.14…1.5 mm² rigid AWG 26...AWG 16 | Sensor: screw terminal cable(s) 0.25…0.5 mm² flexible AWG 26...AWG 16 | Voltage presence: screw terminal cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12 | Voltage presence: screw terminal cable(s) 0.2…4 mm² rigid AWG 24...AWG 12 | Voltage presence: screw terminal cable(s) 0.25…2.5 mm² flexible AWG 24...AWG 12 |
| Wire stripping length | Auxiliary power supply: 7 mm for top connection | Fault: 8 mm for bottom connection | Relay test and fault reset: 5 mm for bottom connection | Sensor: 5 mm for top connection | Voltage presence: 8 mm for bottom connection |
| Tightening torque | Auxiliary power supply: 0.6 N.m top | Fault: 0.6 N.m bottom | Relay test and fault reset: 0.25 N.m bottom | Sensor: 0.25 N.m top | Voltage presence: 0.6 N.m bottom |
| 9 mm pitches | 6 |
| Standards | EN/IEC 60947-2 Annex M | EN/IEC 60755 | UL 1053 | CAN/CSA C22.2 No. 144 |
| Width | 54 mm |
| Height | 81 mm |
| Depth | 74 mm |
| Net weight | 0.3 kg |
| IP degree of protection | IP40 on front face: conforming to EN/IEC 60529 | IP30 on side parts: conforming to EN/IEC 60529 | IP20 on connection terminals: conforming to EN/IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Mechanical robustness | Fire resistance conforming to IEC 60695-2-1 | IK protection 2 joules: IK07 conforming to EN 50102 | Vibrations 13.2...100 Hz: 0.7 g | Vibrations 2...13.2 Hz: +/- 1 mm |
| Overvoltage category | IV |
| Electrical shock protection class | Class II |
| Electromagnetic compatibility | Conducted and radiated emissions: , B, conforming to CISPR 11 | Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6 | Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2 | High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5 | Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4 | Radiated susceptibility: , 3, conforming to IEC 61000-4-3 |
| Relative humidity | 95 % at 55 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -55…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 7.6 cm |
| Package 1 Weight | 276.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 10.424 kg |
