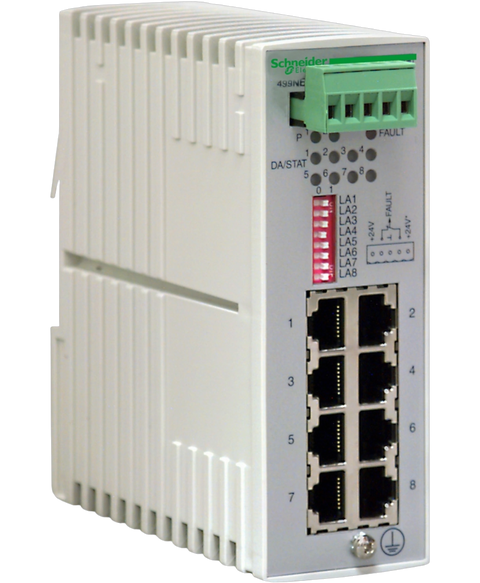

Schneider Electric 499NES18100
The 499NES18100 network switch from Schneider Electric is engineered for Ethernet TCP,IP networks. It features eight ports and supports copper connections with a base of 10BASE-T,100BASE-TX, making it versatile for various applications.
This Schneider Electric 499NES18100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805548441.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | ConneXium |
| Product or component type | Ethernet TCP/IP unmanaged switch |
| Concept | Transparent Ready |
| Communication port protocol | Ethernet TCP/IP | SSH | HTTP | HTTPS | SNMP | SFTP | SCP | LLDP |
| Port Ethernet | 10BASE-T/100BASE-TX - 8 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | SNMP-Traps and SYSLOG |
| Communication service | Telnet | TFTP |
| Redundancy | P1 and P2 redundant power supplies |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 18…32 V DC SELV |
| Power consumption in W | 7 W |
| Electrical connection | Removable connector 5 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE |
| Local signalling | 2 LEDs for P1 P2 power supplies | 1 LED for fault | 1 LED per channel for Ethernet link active |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault | Data link status | Switch fault |
| Ethernet cabling system | TF switches |
| Current consumption | 125...290 mA at 24 V DC |
| Width | 47 mm |
| Height | 135 mm |
| Depth | 111 mm |
| Net weight | 0.23 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 0…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Standards | CUL 60950 | UL 508 | CSA C22.2 No 142 | UL 1604 Class 1 Division 2 | CSA C22.2 No 213 Class I Division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 500 g |
