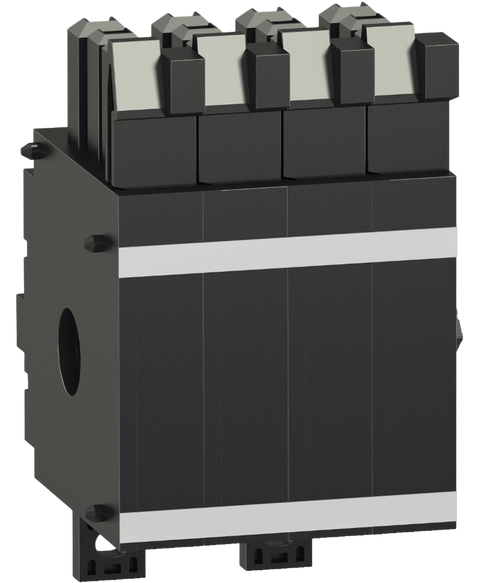

Schneider Electric 48468
AUXILIARY CONTACT, STANDARD, FOR DRAWOUT MASTERPACT, NW08 TO NW63, ADDITIONAL BLOCK, 4 NO,NC, DRAWOUT MOUNT, 100 MA AT 24 V, 2 MA AT 15 V
This Schneider Electric 48468 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26805538092.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Auxiliary contact |
| Device short name | 4 OF |
| Range compatibility | Masterpact MasterPact NW |
| Signal contacts composition | 4 NO/NC |
| Auxiliary contacts type | Standard | Low level |
| Mounting mode | Drawout |
| Breaking capacity (A) | AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2 | AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2 | AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2 | DC-12: 10 A at 24/48 V DC 50/60 Hz conforming to EN/IEC 60947-2 | DC-12: 10 A at 125 V DC 50/60 Hz conforming to EN/IEC 60947-2 | DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2 | DC-12: 8 A at 480 V AC 50/60 Hz conforming to UL 489 | 6 A at 600 V AC 50/60 Hz conforming to UL 489 | 6 A at 250 V DC conforming to UL 489 |
| Minimum load | 100 mA at 24 V | 2 mA at 15 V |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 187.0 g |
