Schneider Electric 48361

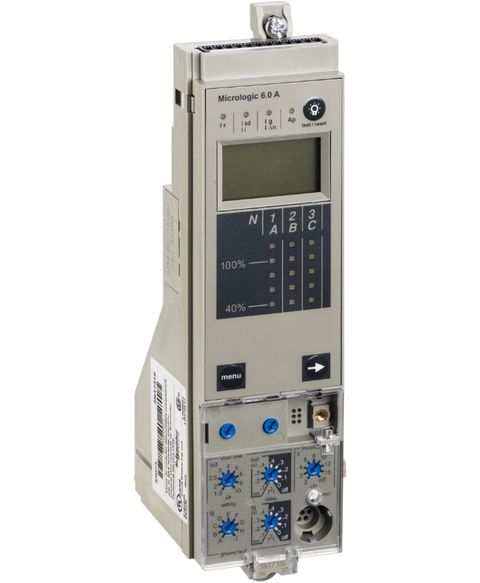

control unit Micrologic 6.0 A, for Masterpact NW drawout, LSIG protections
This Schneider Electric 48361 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26805543570.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | MasterPact |
| Range of product | MasterPact NW |
| Product or component type | Control unit |
| Trip unit name | MicroLogic 6.0 A |
| Trip unit technology | Electronic |
| Range compatibility | Masterpact NW08...40 | Masterpact NW40b...63 | Masterpact NW H10 | Masterpact NW H2 corrosion protection |
| Device application | Distribution |
| Number of poles | 4P | 3P |
| Protected poles description | 4t | 3t | 3t + N/2 |
| Trip unit protection functions | Selective + earth-fault protection |
| Protection type | for overload protection (long time) | for short time short-circuit protection | for instantaneous short-circuit protection | for earth fault |
| Trip unit rating | 800 A at 50 °C | 1000 A at 50 °C | 1250 A at 50 °C | 1600 A at 50 °C | 2000 A at 50 °C | 2500 A at 50 °C | 3200 A at 50 °C | 4000 A at 50 °C | 5000 A at 50 °C | 6300 A at 50 °C |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Drawout |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
| Long-time protection delay adjustment type tr | Adjustable 9 settings |
| [tr] long-time protection delay adjustment range | 0.7…16.6 s at 7.2 x Ir | 0.7…24 s at 6 x Ir | 12.5…600 s at 1.5 x Ir |
| Thermal memory | 20 mn |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Adjustable |
| [tsd] Short-time protection delay adjustment range | 0…0.4 s I²t=off | 0.1…0.4 s I²t=on |
| Instantaneous protection pick-up adjustment type Ii | Adjustable 9 settings |
| [Ii] instantaneous protection pick-up adjustment range | 2...15 x In | Off |
| Ground-fault protection pick-up adjustment type Ig | Adjustable 9 settings |
| [Ig] ground-fault protection pick-up adjustment range | 0.2...1 x In for 400 A < In < 1250 A | 0.3...1 x In for In <= 400 A | 500...1200 A for In >= 1250 A |
| Ground-fault protection time delay adjustment type tg | Adjustable |
| [tg] ground-fault protection time delay adjustment range | 0…0.4 s I²t=off | 0.1…0.4 s I²t=on |
| Earth-leakage protection | Without |
| Zone selective interlocking ZSI | With |
| Local signalling | 3 LEDs (red) for electrical fault | 1 LED (red) for internal error |
| Display type | Digital display |
| Type of measurement | Ammeter |
| Communication of data | Measurement readout | Protection and alarm settings |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.8 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 21.5 cm |
| Package 1 Weight | 369.0 g |
