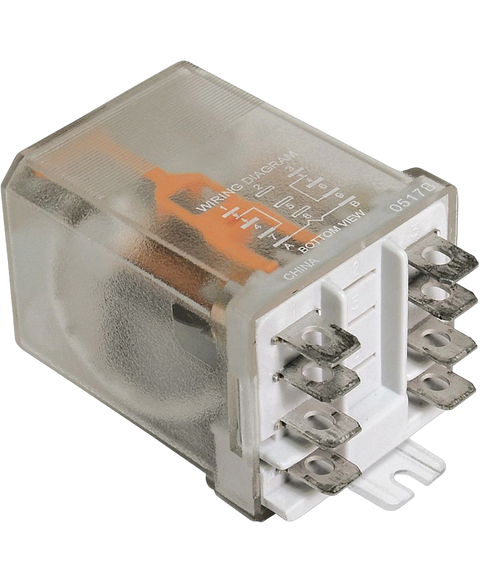

Schneider Electric 389FXBXC112D
Magnecraft 389FXBXC1-12D power relay, DPDT, 12VDC, 25A.
This Schneider Electric 389FXBXC112D is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26909356892.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Coil Current | 120 mA |
| Coil Power | 1.44 W |
| Coil Resistance | 100 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 12 V |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 25 A |
| Contact Material | Silver |
| Current Rating | 25 A |
| Depth | 73.82 mm |
| Height | 35.72 mm |
| Lead Free | Lead Free |
| Length | 38.89 mm |
| Max Current Rating | 25 A |
| Max Operating Temperature | 55 °C |
| Max Voltage Rating (AC) | 300 V |
| Max Voltage Rating (DC) | 28 V |
| Min Operating Temperature | -40 °C |
| Mount | Flanges, Panel |
| Number of Pins | 8 |
| Operate Time | 20 ms |
| RoHS | Compliant |
| Switching Voltage | 600 V |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 600 V |
| Weight | 88 g |
