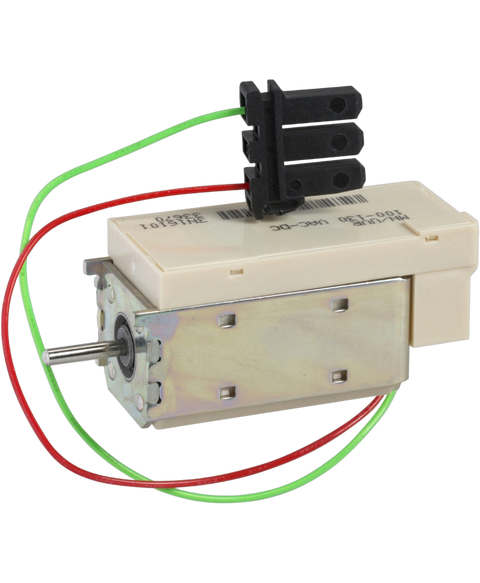

Schneider Electric 33670
voltage release MN - 100..130 V DC,AC 50,60 Hz
This Schneider Electric 33670 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26805538493.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | ComPacT |
| Range of product | ComPacT NS630b...1600 new generation | ComPacT NS1600b...3200 new generation |
| Device short name | MN |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil | Undervoltage release |
| Control type | Standard |
| [Uc] control circuit voltage | 100...130 V AC 50/60 Hz | 100...130 V DC |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 |
| Operating threshold | 0.35...0.7 x Un opening | 0.85 x Un closing |
| Response time | 90 ms +/- 5 % for Compact NS630b...1600 | 90 ms +/- 5 % for Compact NS1600b...3200 | 40 ms +/- 5 % for MasterPact NT | 90 ms +/- 5 % for MasterPact NW |
| Supply holding power | 4.5 VA |
| Accessory / separate part category | Spare part for MasterPact NT | Spare part for MasterPact NT NAVY | Spare part for MasterPact NW | Spare part for MasterPact NW NAVY | Spare part for ComPacT NS630b...1600 new generation | Spare part for ComPacT NS1600b...3200 new generation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 6.100 cm |
| Package 1 Length | 8.300 cm |
| Package 1 Weight | 153.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.000 cm |
| Package 2 Width | 13.000 cm |
| Package 2 Length | 18.200 cm |
| Package 2 Weight | 1.582 kg |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 10.000 kg |
