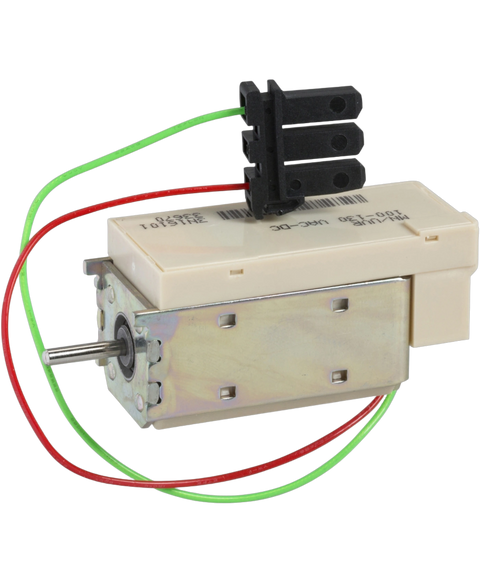

Schneider Electric 33668
MN undervoltage release, ComPact NS630b to NS3200 fixed, MasterPact NT,NW, rated voltage 24,30 VDC, 24 VAC 50,60 Hz
This Schneider Electric 33668 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26801380745.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | ComPacT |
| Range of product | ComPacT NS630b...1600 new generation | ComPacT NS1600b...3200 new generation |
| Device short name | MN |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil | Undervoltage release |
| Control type | Standard |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz | 24...30 V DC |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 |
| Operating threshold | 0.35...0.7 x Un opening | 0.85 x Un closing |
| Response time | 90 ms +/- 5 % for Compact NS630b...1600 | 90 ms +/- 5 % for Compact NS1600b...3200 | 40 ms +/- 5 % for MasterPact NT | 90 ms +/- 5 % for MasterPact NW |
| Supply holding power | 4.5 W |
| Accessory / separate part category | Spare part for MasterPact NT | Spare part for MasterPact NW | Spare part for ComPacT NS630b...1600 new generation | Spare part for ComPacT NS1600b...3200 new generation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 8.200 cm |
| Package 1 Weight | 154.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.000 cm |
| Package 2 Width | 13.000 cm |
| Package 2 Length | 18.500 cm |
| Package 2 Weight | 1.585 kg |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.802 kg |
