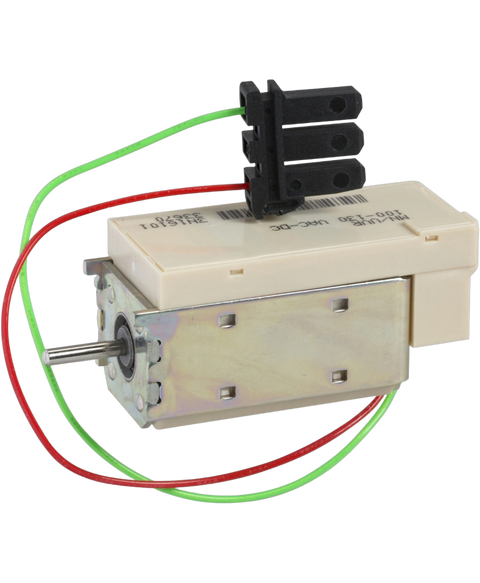

Schneider Electric 33661
MX shunt trip release, Compact NS 630b to Compact NS 3200, 100 VDC to 130 VDC, 100 VAC to 130 VAC 50,60 Hz
This Schneider Electric 33661 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26894025860.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | ComPacT |
| Range of product | ComPacT NS630b...1600 new generation | ComPacT NS1600b...3200 new generation |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil | Instantaneous voltage release |
| Control type | Standard |
| [Uc] control circuit voltage | 100...130 V AC 50/60 Hz | 100...130 V DC |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms +/- 10 % for Compact NS630b...1600 | 50 ms +/- 10 % for Compact NS1600b...3200 | 55 ms +/- 10 % for MasterPact NT | 70 ms +/- 10 % for MasterPact NW |
| Supply holding power | 4.5 VA |
| Accessory / separate part category | Spare part for MasterPact NT | Spare part for MasterPact NW | Spare part for ComPacT NS630b...1600 new generation | Spare part for ComPacT NS1600b...3200 new generation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 cm |
| Package 1 Width | 3.500 cm |
| Package 1 Length | 8.400 cm |
| Package 1 Weight | 149.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.000 cm |
| Package 2 Width | 13.200 cm |
| Package 2 Length | 18.500 cm |
| Package 2 Weight | 1.537 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 18.400 kg |
