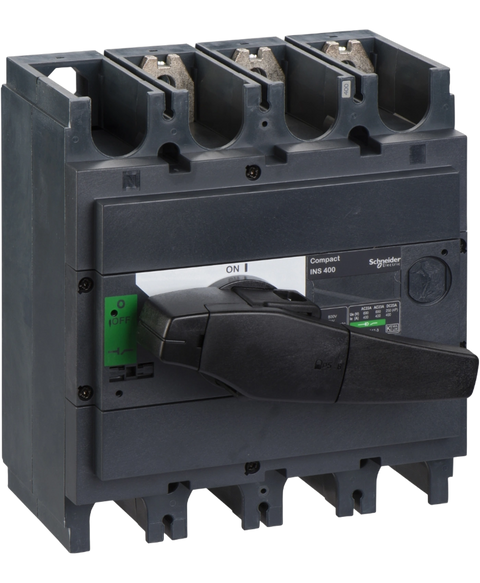

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric 31110
INS400 fixed front 3P man black
This Schneider Electric 31110 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26904125898.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$585.44
(inc. GST)
In Stock
| Range | ComPact |
| Product or component type | Switch disconnector |
| Product name | ComPacT INS |
| Poles description | 3P |
| Network type | AC | DC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-22A: 400 A AC 50/60 Hz 220/240 V | AC-22A: 400 A AC 50/60 Hz 380/415 V | AC-22A: 400 A AC 50/60 Hz 440/480 V | AC-22A: 400 A AC 50/60 Hz 480 V NEMA | AC-22A: 400 A AC 50/60 Hz 500/525 V | AC-22A: 400 A AC 50/60 Hz 660/690 V | AC-23A: 400 A AC 50/60 Hz 220/240 V | AC-23A: 400 A AC 50/60 Hz 380/415 V | AC-23A: 400 A AC 50/60 Hz 440/480 V | AC-23A: 400 A AC 50/60 Hz 480 V NEMA | AC-23A: 400 A AC 50/60 Hz 500/525 V | AC-23A: 400 A AC 50/60 Hz 660/690 V | DC-22A: 400 A DC 125 V 2 poles in series | DC-23A: 400 A DC 125 V 2 poles in series |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 400 A at 60 °C |
| [Icm] rated short-circuit making capacity | 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz | 50 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 125 V DC | 690 V AC 50/60 Hz |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
| Control type | Direct front rotary handle |
| Handle colour | Black |
| Mounting mode | Fixed |
| Mounting support | Plate | Rail |
| Upside connection | Front |
| Downside connection | Front |
| Maximum power | AC-23: 110 kW at 220/240 V AC 50/60 Hz | AC-23: 110 kW at 230 V AC 50/60 Hz (NEMA) | AC-23: 200 kW at 380/415 V AC 50/60 Hz | AC-23: 220 kW at 440 V AC 50/60 Hz | AC-23: 220 kW at 480 V AC 50/60 Hz (NEMA) | AC-23: 250 kW at 500/525 V AC 50/60 Hz | AC-23: 400 kW at 660/690 V AC 50/60 Hz |
| Rated duty | Uninterrupted |
| [Icw] rated short-time withstand current | 11.5 kA during 3 s conforming to IEC 60947-3 | 20 kA during 1 s conforming to IEC 60947-3 | 4 kA during 30 s conforming to IEC 60947-3 | 4.9 kA during 20 s conforming to IEC 60947-3 |
| Mechanical durability | 10000 cycles |
| Electrical durability | AC-22A: 1500 cycles 440 V AC 50/60 Hz | AC-22A: 1500 cycles 500 V AC 50/60 Hz | AC-22A: 1500 cycles 690 V AC 50/60 Hz | AC-23A: 1500 cycles 440 V AC 50/60 Hz | AC-23A: 1500 cycles 500 V AC 50/60 Hz | AC-23A: 1500 cycles 690 V AC 50/60 Hz | DC-23A: 1000 cycles 125 V DC 2 poles in series |
| Connection pitch | 45 mm |
| Height | 205 mm |
| Width | 185 mm |
| Depth | 120 mm |
| Net weight | 4.6 kg |
| Standards | IEC 60947-1 | IEC 60947-3 |
| Product certifications | KEMA-KEUR | CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 22.600 cm |
| Package 1 Weight | 4.985 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 20.639 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 93.757 kg |
