Schneider Electric 29450

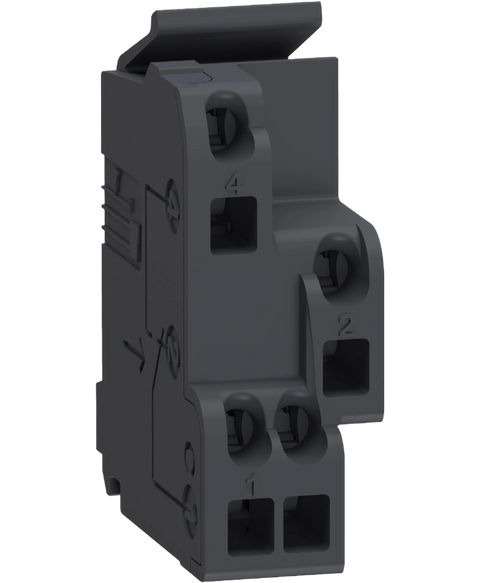

OF,SD,SDE,SDV auxiliary contact
This Schneider Electric 29450 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Accessories range and is referenced internally as PartLogic SKU PL26805542764.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Auxiliary contact |
| Device short name | OF | SD | SDE | SDV |
| Device application | Breaker status monitoring |
| Range compatibility | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 | ComPact ComPacT INS | ComPact Compact INV | ComPact ComPact NSX | EasyPact EasyPact CVS | PowerPact PowerPact Multistandard | ComPact ComPact NSX DC |
| Signal contacts composition | 1 NO/NC |
| Fault type | General electric fault |
| Local signalling | ON/OFF indication for open/close | Trip indicator for relay trip indicator | Fault trip for electrical fault |
| Auxiliary contacts type | Standard |
| Mounting mode | Clip-on |
| [Ith] conventional free air thermal current | 5 A |
| Breaking capacity (A) | AC-12: 6 A at 24 V AC 50/60 Hz | AC-12: 6 A at 48 V AC 50/60 Hz | AC-12: 6 A at 110 V AC 50/60 Hz | AC-12: 6 A at 220/240 V AC 50/60 Hz | AC-12: 6 A at 380/440 V AC 50/60 Hz | AC-12: 6 A at 480 V AC 50/60 Hz | AC-12: 6 A at 660/690 V AC 50/60 Hz | AC-15: 6 A at 24 V AC 50/60 Hz | AC-15: 6 A at 48 V AC 50/60 Hz | AC-15: 5 A at 110 V AC 50/60 Hz | AC-15: 4 A at 220/240 V AC 50/60 Hz | AC-15: 2 A at 380/440 V AC 50/60 Hz | AC-15: 1.5 A at 480 V AC 50/60 Hz | AC-15: 0.1 A at 660/690 V AC 50/60 Hz | DC-12: 6 A at 24 V DC 50/60 Hz | DC-12: 2.5 A at 48 V DC 50/60 Hz | DC-12: 0.6 A at 110 V DC 50/60 Hz | DC-12: 0.3 A at 250 V DC 50/60 Hz | DC-14: 1 A at 24 V DC 50/60 Hz | DC-14: 0.2 A at 48 V DC | DC-14: 0.05 A at 110 V DC | DC-14: 0.03 A at 250 V DC |
| Minimum load | 100 mA at 24 V DC |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| Accessory / separate part category | Spare part for Compact NS630b...1600 | Spare part for Compact NS1600b...3200 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.400 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 16.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.500 cm |
| Package 2 Width | 16.000 cm |
| Package 2 Length | 16.000 cm |
| Package 2 Weight | 176.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.590 kg |
