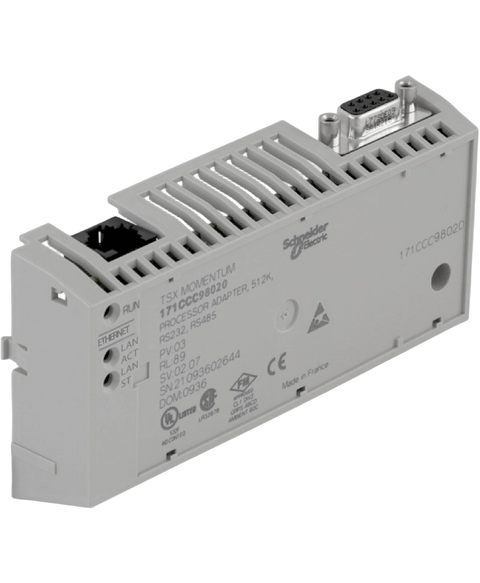

Schneider Electric 171CCC98020
The 171CCC98020, a processor adaptor module from Schneider Electric's Modicon Momentum series, is engineered to facilitate robust communication. This module supports Ethernet and Modbus, making it versatile for various applications.
This Schneider Electric 171CCC98020 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805759265.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | M1/M1E processor adaptor |
| Concept | Transparent Ready |
| Level or class | Class B10 |
| Software designation | Concept version V2.6 | Modsoft version >= V2.5 | ProWORX NxT version V2.0 | ProWORX 32 |
| Communication port protocol | Ethernet | Modbus |
| Processor name | X 86 based (INTEL, AMD) |
| Clock frequency | 50 MHz |
| Web services | Web page loader software tool | Web page loader | Rack viewer | Data editor |
| Ethernet service | I/O scanning | Modbus TCP messaging |
| Discrete I/O processor capacity | 8192 I/8192 O |
| Memory type | 512 KB flash | 544 kB RAM |
| Memory description | Program memory 18 kB LL984 | Data 24 kB |
| Material | Lexan |
| Word length | 16 bit |
| [Us] rated supply voltage | 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O limit processor capacity | I/O local on Modbus |
| Number of port | 1 RS485 | 1 ETHERNET |
| Marking | CE |
| Net weight | 0.042 kg |
| Protective treatment | TC |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…96 % without condensation |
| Operating altitude | 2000 m |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| vibration resistance | 1 gn | 0.75 mm d.a |
| Product certifications | Nema type 250 | UL | cUL | FM Class 1 Division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18 cm |
| Package 1 Length | 26 cm |
| Package 1 Weight | 211 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.166 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 8 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 2.203 kg |
