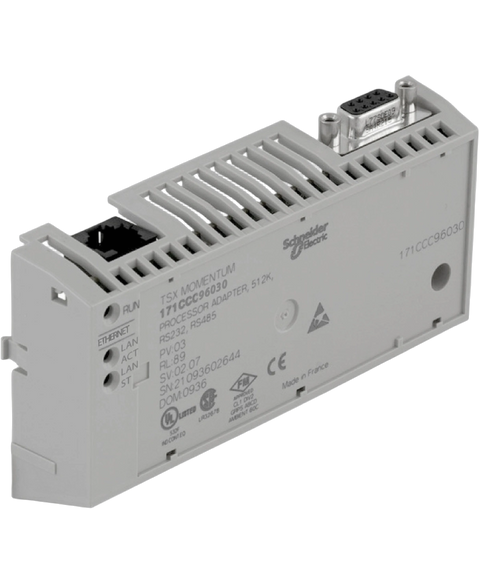

Schneider Electric 171CCC96030
The 171CCC96030 is an M1,M1E Processor Adapter Module from Schneider Electric’s Modicon Momentum series, functioning effectively at a clock frequency of 50 megahertz. It employs Ethernet as its communication protocol, enhancing connectivity options for integration into automation systems.
This Schneider Electric 171CCC96030 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805645654.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | M1/M1E processor adaptor |
| Concept | Transparent Ready |
| Level or class | Class B10 |
| Software designation | Concept version V2.6 | Modsoft version >= V2.5 | ProWORX NxT version V2.0 | ProWORX 32 |
| Communication port protocol | Ethernet |
| Processor name | X 86 based (INTEL, AMD) IEC executive |
| Clock frequency | 50 MHz |
| Web services | Rack viewer | Web page loader software tool | Web page loader | Data editor |
| Ethernet service | I/O scanning | Modbus TCP messaging |
| Discrete I/O processor capacity | 8192 I/8192 O |
| Memory type | 1 MB flash | 544 kB RAM |
| Memory description | Program memory 18 kB LL984 | Program memory 200 kB IEC | Data 24 kB |
| Material | Lexan |
| Word length | 16 bit |
| [Us] rated supply voltage | 5.0 V DC +/-5 % |
| Supply | By Momentum I/O base |
| Exact time for 1 Kinstruction | 1 ms |
| Register I/O processor capacity | 26048 I/26048 O |
| I/O limit processor capacity | 8192 bits max |
| I/O words/drop | 128 I/O Concept | 80 I/O ProWORX |
| Number of port | 1 I/O bus | 1 ETHERNET |
| Marking | CE |
| Net weight | 0.042 kg |
| Protective treatment | TC |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…96 % without condensation |
| Operating altitude | 2000 m |
| Shock resistance | <= 15 gn peak 11 ms half sine wave acceleration |
| vibration resistance | 1 gn | 0.75 mm d.a |
| Product certifications | UL | Nema type 250 | cUL | FM Class 1 Division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6 cm |
| Package 1 Width | 18 cm |
| Package 1 Length | 26 cm |
| Package 1 Weight | 197 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.122 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 8 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 2.203 kg |
