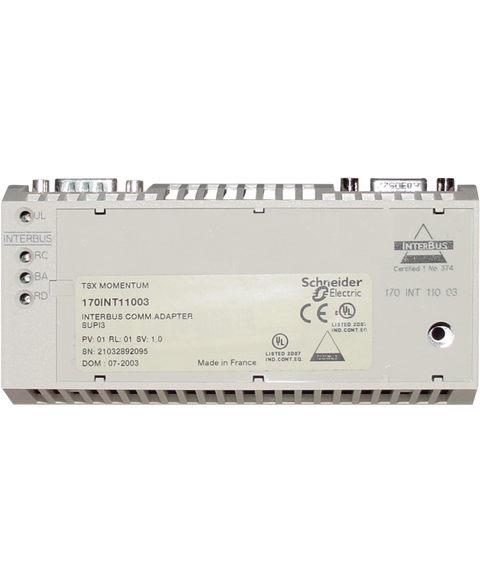

Schneider Electric 170INT11003
The 170INT11003 is a communication adapter belonging to Schneider Electric's Modicon Momentum series. It facilitates an efficient connection between devices using a Master,Slave configuration and supports a communication protocol defined as Interbus Generation SUPI III.
This Schneider Electric 170INT11003 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Interbus range and is referenced internally as PartLogic SKU PL26805657512.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Communication Adapter |
| Product Line | Modicon Momentum |
| Part Number | 170INT11003 |
| EAN | 3595862060721 |
| Weight | 1.00 lbs (0.45 kg) |
| Access Method | Master/Slave and Continuous Shift Register |
| Number of Devices Per Segment | 0 to 254 per segment |
| Communication Protocol | Interbus Generation SUPI III |
| Maximum Cable Distance Between Devices | More than 3,280 feet (1,000 meters) or 1,312.14 feet (400 meters) between two modules |
| Power Dissipation | 0.8 Watt (without fiber-optic adapter) |
| Transmission Rate | 500 kilobits per second |
| Protection Class | IP20 |
| Ambient Operating Temperature | 0 to 60°C (in a non-condensing environment) |
| Operating Altitude | Less than 16,404 feet (5,000 meters) |
| Electrical Connection Type | Two 9-pin D-Sub Interbus Connectors |
| Storage Temperature | -40 to 85°C (in a non-condensing environment) |
| Type of Control Parameter | CRC-16 |
| Network Topology | Ring Network |
| Transmission Cable Type | Twisted Pairs Cable |
| Brand | Schneider Electric |
