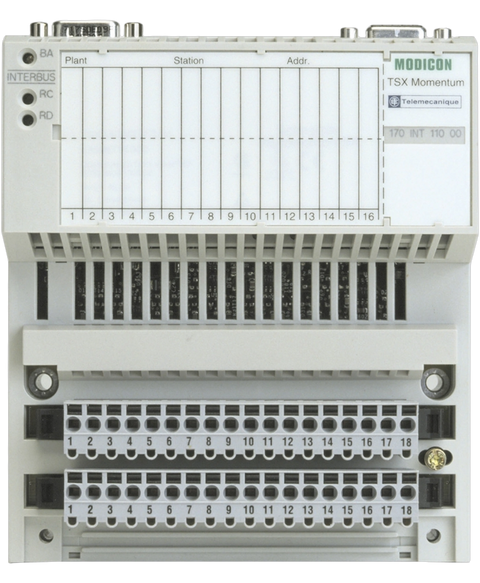

Schneider Electric 170INT11000
The 170INT11000 is a communication adapter in the Modicon Momentum series from Schneider Electric, designed for effective data transmission. It utilizes the Interbus Generation SUPI II communication protocol with a transmission capacity of 500 kilobits per second, making it suitable for fast networking solutions. The device can operate over twisted pairs cable and is structured in a ring network topology.
This Schneider Electric 170INT11000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Interbus range and is referenced internally as PartLogic SKU PL26805658664.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | Communication Adapter |
| Product Line | Modicon Momentum |
| Part Number | 170INT11000 |
| EAN | 3595861000360 |
| Weight | 1.00 lbs (0.45 kg) |
| Communication Protocol | Interbus Generation SUPI II |
| Transmission Rate | 500 kilobits per second |
| Transmission Cable Type | Twisted pairs cable |
| Network Topology | Ring network |
| Electrical Connection Type | Two 9-pin D-Sub Interbus connectors |
| Access Method | Master/Slave and continuous shift register |
| Number of Devices Per Segment | 0 to 254 per segment |
| Maximum Cable Distance Between Devices | More than 3,280 feet (1,000 meters) or 1,312.14 feet (400 meters) between two modules |
| Type of Control Parameter | CRC-16 |
| Power Dissipation | 0.8 Watt (without fiber-optic adapter) |
| Power Consumption | Less than 200 to 400 milliamperes at 5 Volts DC |
| Protection Class | IP20 |
| Ambient Operating Temperature | 0 to 60°C (in a non-condensing environment) |
| Storage Temperature | -40 to 85°C (in a non-condensing environment) |
| Brand | Schneider Electric |
