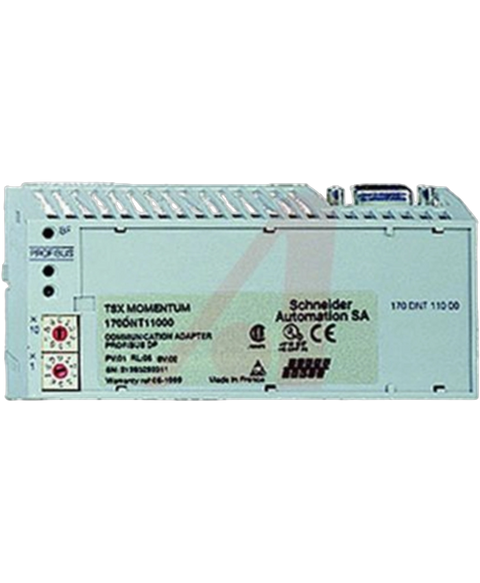

Schneider Electric 170DNT11000
The Schneider Electric 170DNT11000 is a communication adaptor from the Modicon Momentum series that facilitates data transmission using the Profibus DP protocol. This device supports a transmission rate ranging from 9.6 to 12 Mbit,s over twisted pair cabling in multidrop or ring topologies.
This Schneider Electric 170DNT11000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Devicenet range and is referenced internally as PartLogic SKU PL26902838932.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Modicon Momentum |
| Part Number | 170DNT11000 |
| EAN | 3595861000353 |
| Weight | 0.19 lbs (0.09 kg) |
| Product | Communication Adaptor |
| Communication Protocol | Profibus DP |
| Transmission Rate | 9.6 to 12 Mbit/s |
| Transmission Medium | Twisted pair cable |
| Topology | Multidrop and ring |
| Number of Devices Supported | Up to 126 |
| Cable Length | Up to 1200 meters |
| Addressing | Switch-selectable |
| Control Parameter | CRC-16 |
| Electrical Connection | 1 x 9-pin SUB-D connector |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 95% without condensation |
| Certifications | UL, CSA |
| Brand | Schneider Electric |
