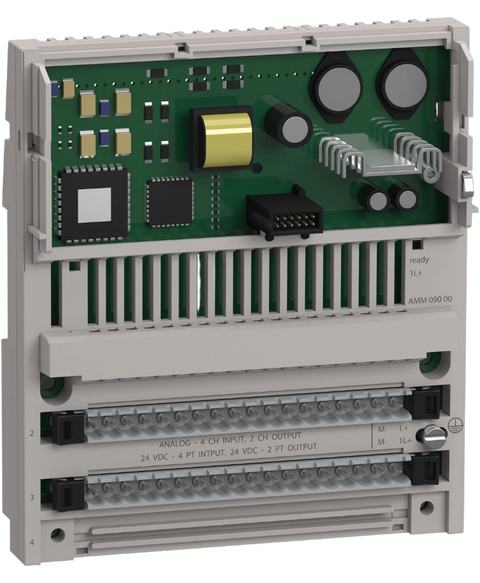

Schneider Electric 170AMM09000
The 170AMM09000 module from Schneider Electric is an advanced I,O base unit designed for versatile control applications. It incorporates 4 analog differential inputs alongside 4 discrete inputs, facilitating extensive data acquisition capabilities.
This Schneider Electric 170AMM09000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed io range and is referenced internally as PartLogic SKU PL26899418873.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue,discrete I/O base |
| Group of channels | 1 group of 2 discrete outputs | 1 group of 4 discrete inputs | 1 group of 4 analog differential inputs | 1 group of 2 analog outputs |
| Discrete input logic | Positive |
| Input voltage limits | < 30 V |
| Discrete output logic | Positive |
| Response time | < 0.1 ms from state 0 to state 1 for discrete output | < 0.1 ms from state 1 to state 0 for discrete output | 2.2 ms from state 0 to state 1 for discrete input | 3.3 ms from state 1 to state 0 for discrete input |
| Local signalling | 8 LEDs for channel status |
| Maximum power dissipation in W | 6 W |
| Height | 125 mm |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Protective treatment | TC |
| Marking | CE |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 412.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.780 kg |
