Schneider Electric 170ADO35000

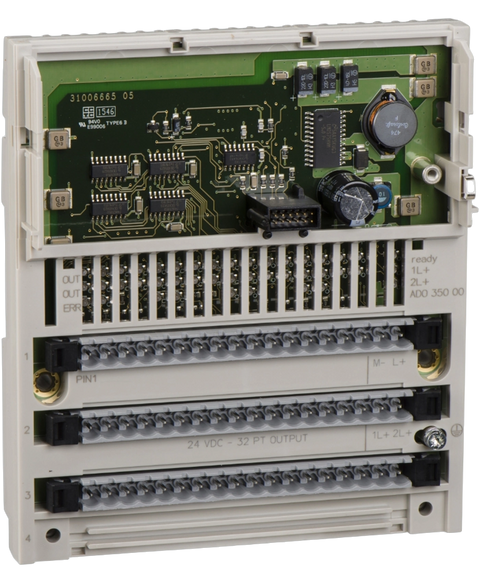

The 170ADO35000 is a discrete output module from Schneider Electric’s Modicon Momentum series. It features 32 solid-state outputs, capable of handling a surge current of 5 A for brief durations of 1 ms, with an output voltage range of 0 to 24 V DC.
This Schneider Electric 170ADO35000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26905719791.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete output base DC |
| Group of channels | 2 groups of 16 outputs |
| Current per channel | 0.5 A |
| Discrete output number | 32 |
| Output overload protection | Outputs electronically protected |
| Terminals description PLC n°1 | (15)OUT_DIS#15 | TB | (2)OUT_DIS#2 | (8)OUT_DIS#8 | (L+)PW_POS | (16)OUT_DIS#16 | (7)OUT_DIS#7 | (M-)PW_NEG | (12)OUT_DIS#12 | (9)OUT_DIS#9 | (11)OUT_DIS#11 | (14)OUT_DIS#14 | (1)OUT_DIS#1 | (5)OUT_DIS#5 | (10)OUT_DIS#10 | (13)OUT_DIS#13 | (3)OUT_DIS#3 | (4)OUT_DIS#4 | (6)OUT_DIS#6 |
| Terminals description PLC n°2 | (6)OUT_DIS#22 | (4)OUT_DIS#20 | (7)OUT_DIS#23 | (2L+)PW_POS | (3)OUT_DIS#19 | TB_1 | (8)OUT_DIS#24 | (10)OUT_DIS#26 | (12)OUT_DIS#28 | (2)OUT_DIS#18 | (13)OUT_DIS#29 | (16)IN_DIS#32 | (11)OUT_DIS#27 | (14)OUT_DIS#30 | (15)OUT_DIS#31 | (5)OUT_DIS#21 | (9)OUT_DIS#25 | (1)OUT_DIS#17 | (1L+)PW_POS |
| Local signalling | 32 LEDs for channel status |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 47.5 mm |
| Net weight | 0.21 kg |
| Protective treatment | TC |
| Marking | CE |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 403.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.545 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 40.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 47 kg |
