Schneider Electric 170ADM35011

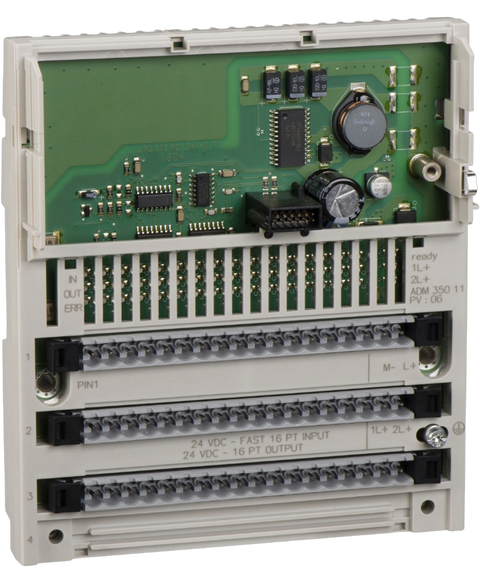

The Schneider Electric 170ADM35011 is a discrete solid state I,O module designed for digital input scenarios. It supports up to 16 digital inputs and operates with an output voltage of 24 V DC, making it suitable for various automation applications.
This Schneider Electric 170ADM35011 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed io range and is referenced internally as PartLogic SKU PL26805664351.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Group of channels | 2 groups of 8 outputs | 1 group of 16 inputs |
| Discrete input number | 16 |
| Discrete input logic | Positive |
| Discrete output number | 16 |
| Discrete output logic | Positive |
| Input resistance | 4 kOhm |
| Peak output current | 5 A |
| Fault type | Overload on output |
| Isolation between channels and bus | 500 V AC |
| Terminals description PLC n°1 | (6)IN_DIS#6 | (1)IN_DIS#1 | (4)IN_DIS#4 | (8)IN_DIS#8 | (14)IN_DIS#14 | (L+)PW_POS | (10)IN_DIS#10 | (3)IN_DIS#3 | (M-)PW_NEG | (12)IN_DIS#12 | (16)IN_DIS#16 | (9)IN_DIS#9 | (11)IN_DIS#11 | (5)IN_DIS#5 | TB | (2)IN_DIS#2 | (15)IN_DIS#15 | (7)IN_DIS#7 | (13)IN_DIS#13 |
| Terminals description PLC n°2 | (16)OUT_DIS#16 | TB_1 | (12)OUT_DIS#12 | (13)OUT_DIS#13 | (4)OUT_DIS#4 | (2)OUT_DIS#2 | (10)OUT_DIS#10 | (15)OUT_DIS#15 | (5)OUT_DIS#5 | (6)OUT_DIS#6 | (11)OUT_DIS#11 | (1L+)PW_POS | (9)OUT_DIS#9 | (1)OUT_DIS#1 | (14)OUT_DIS#14 | (2L+)PW_POS | (7)OUT_DIS#7 | (8)OUT_DIS#8 | (3)OUT_DIS#3 |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 47.5 mm |
| Net weight | 0.2 kg |
| Protective treatment | TC |
| Marking | CE |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 389.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.331 kg |
